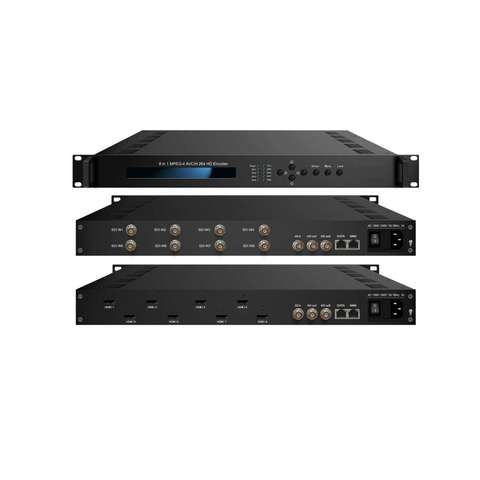

Digital Distributor Price Magnum Chipset UDP Multicast HDMI ASI Encoder
Short Description:
| Input | 8×HDMI (or SDI) inputs |
| Video | |
| Resolution | 1920×1080_60P, 1920×1080_50P |
| Encoding | MPEG-4 AVC/H.264 |
| Bit-rate | 0.8Mbps~19Mbps (each channel) |
| Rate Control | CBR/VBR |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Low delay | 50-500 ms available |
| Audio | |
| Encoding | MPEG-1 Layer 2 (HE-AAC V2, LC- AAC Option);AC3 passthrough (for HDMI) |
| Sampling rate | 48KHz |
| 24-bit | Resolution |
| Bit-rate | 64Kbps~384Kbps each channel |
| Audio Gain | 0-400 |
| Multiplexing | 1 ASI input multiplexed with local 8 channels of TS |
| Stream output | 2*ASI output, BNC interface |
| System function | LCD/keyboard operating, net manager (SNMP) |
| Miscellaneous | |
| Dimension (W× L× H) | 440mm×410mm×44.5mm |
| Approx weight | 4kg |
| Temperature | 0~45℃(work), -20~80℃(Storage) |
| Power | AC 100V-220V±10%, 50/60Hz |
| Consumption | 25W |
