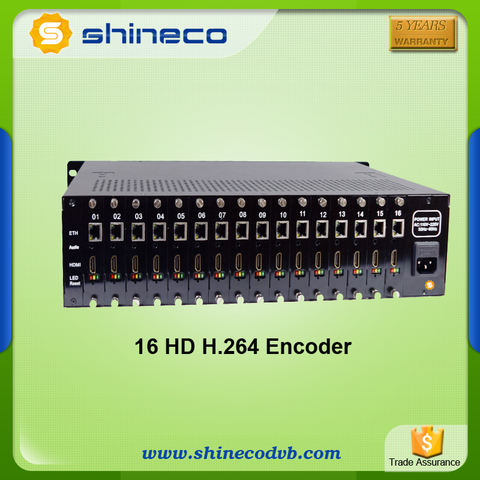

16 in 1 H264 HD Encoder support HTTP/RTMP/RTSP/HTTP/UDP for IPTV

Short Description:


Product Detail

Video Video compression: H.264/AVC High Profile Level 4.0Video inputs: 16*HD-MI+AV 1.3a version (support HDCP protocol)Analog video input mode: PAL, NTSCResolution: 1920*1080_60P, 1920*1080_60i,    1920*1080_50i, 1280*720_60P, 1280*720_50P         Bit-rate: 0.8 ~ 12Mbps, CBR/VBRVideo pre-processing: De-interlacing, Noise reduction, Sharpen
Audio Audio compression: AAC, MP3Sampling rate: Adaptive, output sample rate optionalSampling accuracy: 24-bitBit Rate: 32K,44.1K,48K,64K,96K,128K,160K,192KEncoding bit rate: 64 ~ 384Kbps
IP output Transport protocol:TS over IP output,HTTP/RTMP/RTSP/HTTP/UDP protocol
System Program stream: HTTP,UDP,RTSP,RTMP,ONVIFConfiguration Interface: Web operationUpgraded: Can be via network for software upgraded.Connector: RJ45, 1000M Ethernet interface.
  Physical and power Voltage: AC220V±10%  50/60 HzConsumption: 80WOperating temperature: -20~80°CDimensions: 484mm(W)*365mm(D)*148mm(H)Weight: 9.6Kg/pc

xxxxxxx.
