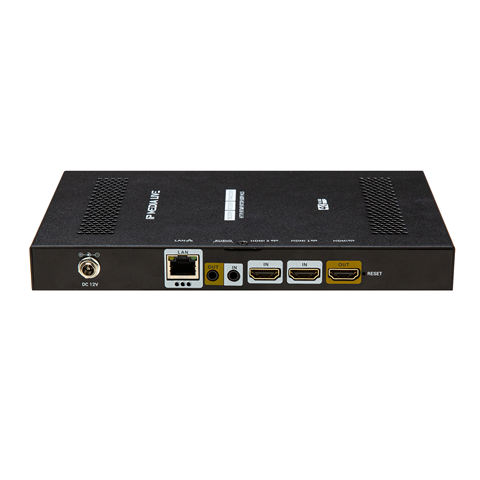

4K IPTV Subscripyion Solution H.265 2 Channel HDMI Encoder
Short Description:
| Product model | H2 Multifunctional Professional Encoder&Decoder&Transcoder&Mixer |
| Input | 2*HDMI input, 1*audio input |
| Output | 1*IP/AUDIO/HDMI output, |
| USB recoding | Support usb recoding |
| Video | |
| Input resolution | Up to 4K-3840*2160, standard HDMI resolution |
| Coding standard | H.265/ H.264 |
| Coding level | H.265 MAIN PROFILEH.264 BASELINE PROFILEH.264 MAIN PROFILEH.264 HIGH PROFILE |
| Encoded size | 640*360~3840*2160(Customizable) |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~50 MBIT/S |
| Video frame rate | 4K 30fps,1080P 60fps |
| OSD | Text, Image |
| Audio | |
| Input selection | 2 channel embedded audio hdmi, 1 channel 3.5MM independent audio, support audio gain |
| Audio coding | AAC/ MP3/ G.711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 24000,32000,44100,48000,64000,256000 etc |
| IP output | 1 RJ 100M / 1000M adaptive Ethernet port, dual-bitrate( H.265/264 TS stream) |
| System | |
| Network protocol | SRT,HTTP, RTSP, RTMP, RTMPS,ONVIF, HLS, UDP multicast, unicast |
| Configuration management | User interface, remote upgrade, Andriod APP, multi-one management platform |
| Power supply | 5V~2A |
| power consumption | 5W |
| Size | 103mm * 60mm * 15mm(L*W*H) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 0.3KG |
