100G TDM DWDM System OSN 1800 transmission OTN
Short Description:

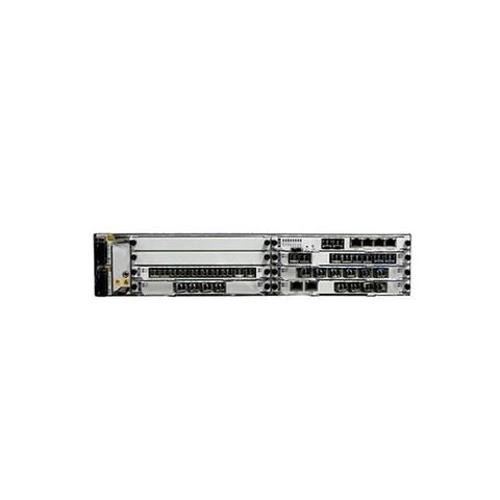

| Appearance | |
| Dimensions (mm) | |
| 44 (H) × 435 (W) × 220 (D) | 88 (H) × 435 (W) × 220 (D) |
| Number of Slots | |
| 4 | 8 |
| Access Capacity | |
| 60G | 120G |
| Switching Capability | |
| ODUk | ODUk (k = 0, 1, 2)/ODUflex |
| Packet | Layer 2 switch |
| System Capacity | CWDM: 8-channel (max), 1471–1611 nm (Band S+C+L, ITU-T G.694.2)DWDM: 40-channel (max), 192.1–196.0 THz (Band-C, ITU-T G.694.1) |
| Fiber Type | ITU-T G.652/G.653/G.655 |
| Reach | Single reach: Max. 140 km (39 dB) |
| Service | 2M–10G full rates, including E1/T1, STM-1/4/16/64, OC-3/12/48/192, FE, GE, 10GE, FC100/200/400/800/1200, FICON, ESCON, DVB-ASI, HDTV, HD SDI, SD SDI, 3G SDI, EPON, GPON, and CPRI 2/3/6/7 |
| WDM-Side Interface | OTU-1/OTU-2/OTU-2e/OTU5G |
| Any Service Board | LQM2: 8 x Any -> 2.5GELOM: 8 x Any -> 10GLSX: 10G Any -> 10GLDX: 2 x 10G Any -> 10G |
| Pluggable Module | SFP/SFP+/XFP; tunable XFP |
| Topology | Point-to-point, chain, star, and ring |
| Synchronization | 2 Mbit/s or 2 MHz. SSM protocolSynchronous EthernetIEEE 1588v2 |
| Protection | Board embedded 1+1OCh SNCP; ODUk SNCP |
| Installation | 19" or 23" rack, ETSI 300 mm/600 mm rack,Mobile or FTTx outdoor cabinet, Wall- or Pole-mount |
| Operating Temperature | –5°C to 55°C |
| Temperature-Hardeneda | –40°C to 65°C |
| Relative Humidity | 5–95% |
| Power Supply | AC: 110–220 VDC: –48 V or –60 V1+1 protection for power supply |
| Power Consumption | |
| 50 w (typical) | 150 w (typical) |
