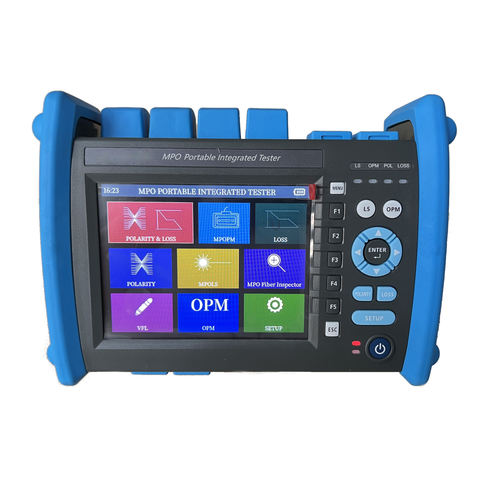

MPO Portable Integrated Tester mpo fiber tester optical power meter light source
Short Description:
| Type | MPO integrated tester |
| OLS | |
| Wavelength | 1550nm(optional) |
| Output power | ≥-5dBm |
| Spectral width (FWHM) | ≤5nm |
| Frequency | CW、270、1K、2KHZ |
| Power stability | ≤±0.1 |
| OPM | |
| Detector type | InGaAs |
| Wavelength | 850nm、1300nm、1310nm、1550nm |
| Measuring range | +3～-50 dBm |
| Power measurement linearity | ±0.1 dB |
| Power measurement uncertainty | ±0.25 dB |
| Port | MPO Male connector |
| Power unit | dBm、dB、xW |
| Resolution ratio | 0.01dB |
| Polarity detection | A、B、C & user-defined |
| Record storage | Applied |
| General power meter | |
| Wavelength test range | 800～1700nm |
| Wavelength | 850/1300/1310/1490/1550/1625nm |
| Measuring range | +26 ～ -50 dBm |
| Uncertainty | ≤ 0.25 dB |
| VFL | |
| Wavelength | 650nm |
| Output power | 10mW |
| Other | |
| Display size | 5.6-inch TFT color screen |
| Power supply | 7.4V 4000mAh lithium battery/Micro USB |
| Automatic shutdown time | user-defined optional |
| Low battery warning | Icon flashing |
| Communication interface | Micro USB |
| Operating temperature（℃） | -10～+60 |
| Storage temperature（℃） | -25～+70 |
| Dimension(mm) | 260×155×73 |
| Weight(g) | 1250 |
