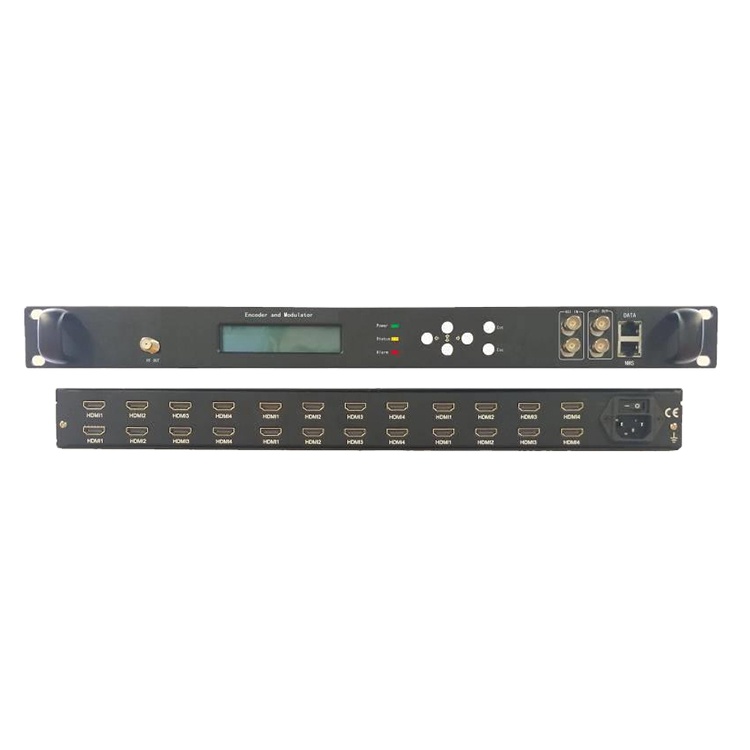

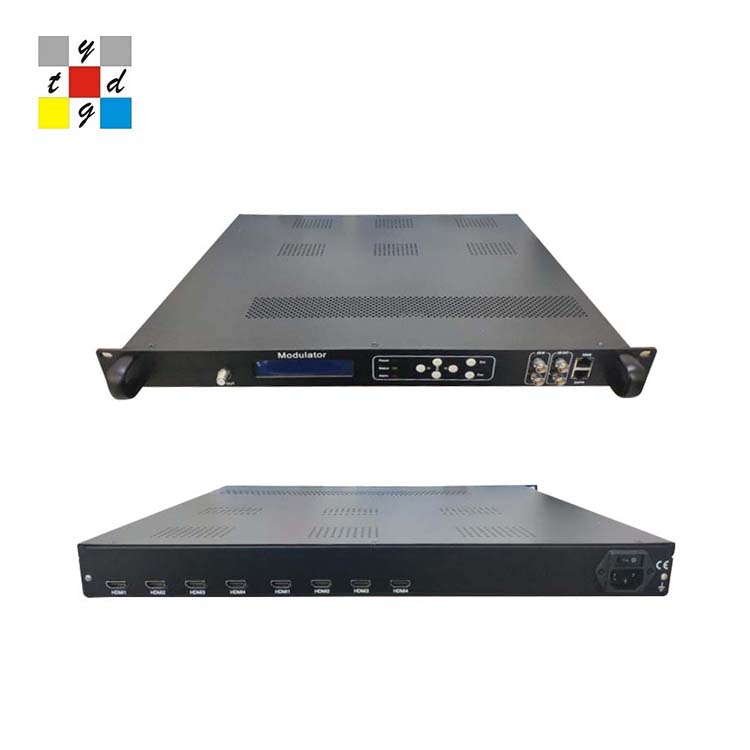

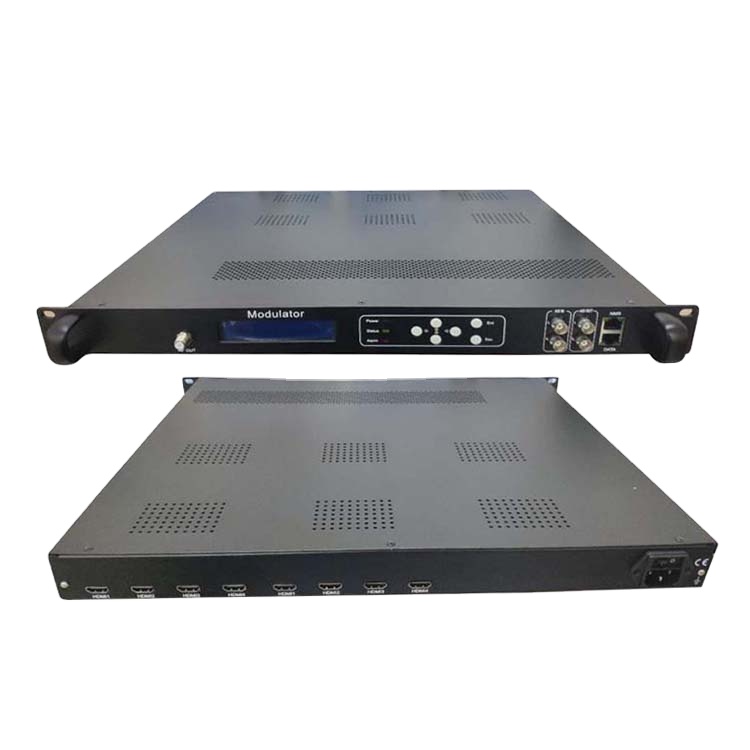

Digital tv optic dvbt isdbt 24 port dvb card encoder modulator
Short Description:
| Input | 8HD Input |
| Video | |
| Resolution | 1920×1080_60p 1920×1080_50p |
| Encoding | MPEG4 AVC/H.264 High Profile Level 4.0 for HD |
| Bit-rate | 0.8Mbps~19ps (each channel) |
| Rate Control | |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, noise reduction, sharpening |
| Audio | |
| Encoding | MPEG-1 Layer 2, HE-AAC,LC-AAC |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Bit-rate | 64Kb/s~384Kb/s each channel |
| Multiplexing | |
| Multiplex 1ASI input and 8 channels hd encoding programs | |
| 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream. | |
| Stream output | |
| IP out MPTS, PTS, unicast, multicast, support IP out null packets filter. | |
| System function | |
| LCD/keyboard operating, network management(SNMP), English control interface Ethernet software upgrade | |
| Genaral | |
| Dimensions (W×D×H) | 482mm×455mm×44.5mm |
| Approx weight | 3.2 |
| Temperature range | 0~45℃(Operating), -20~80℃(Storage) |
| Power Requirements | AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
| Power consumption | 25W |
