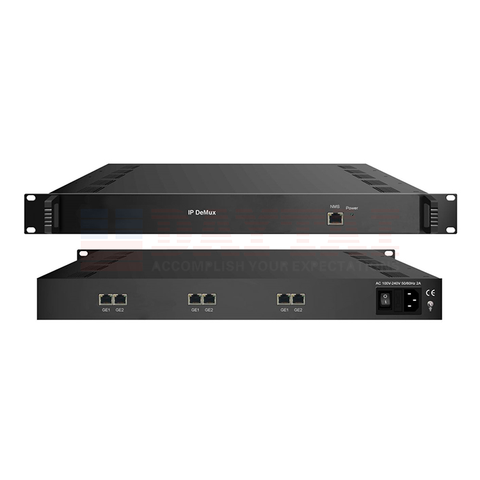

Head-end IP TS conversion 512 SPTS MPTS to 512 SPTS Output 1U Chassis IP De-Multiplexer
Short Description:
| Item | |
| Specification | |
| Input | |
| 512 SPTS or MPTS IP input over UDP, RTP, Unicast and Multicast (per card) | |
| Output | |
| 512 SPTS IP output UDP, RTP, Unicast and Multicast (per card) | |
| Multiplexing | |
| Support CA PID filtering, PID re-mapping | |
| Support accurate PCR adjusting | |
| Support PSI/SI rebuilding and editing | |
| General | |
| Dimension(WxLxH) | |
| 482mm×410mm×44mm | |
| Weight | |
| 3.6kg | |
| Temperature | |
| 0~45℃(working )，-20~80℃(storage) | |
| Power supply | |
| 100~240VAC，50/60Hz | |
| consumption | |
| 20W |
