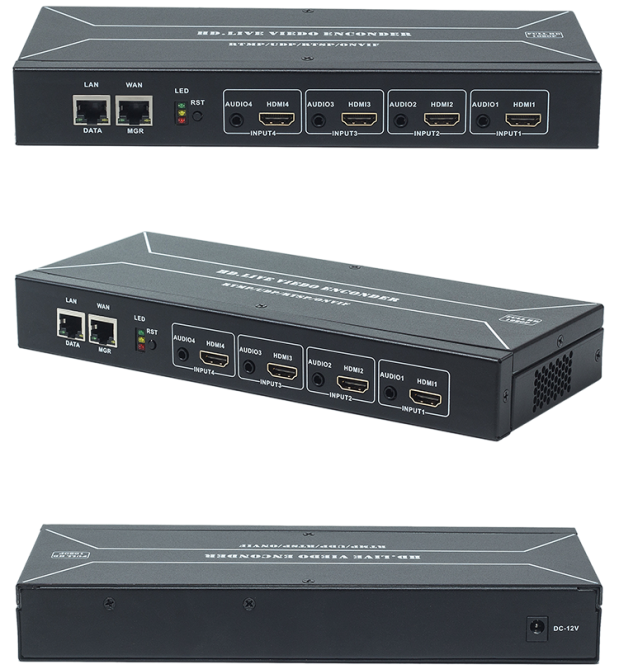

Shineco Dual Ethernet 4 HDMI H 264 Encoder HD Encoders
Short Description:
| Product model | SNK308 4Channel HDMI Encoder |
| Input | 4Channel HDMI input, 4 Channel audio input |
| Output | 1 channel IP output, 1 network management port.4 streams output |
| Video | |
| Input resolution | Up to 1920x1080p 60FPS |
| Coding standard | H.264 |
| Coding level | H.264 BASELINE PROFILEH.264 MAIN PROFILEH.264 HIGH PROFILE |
| Encoded size | 640*360~1920*1080 |
| Video bit rate | Rate control: CBR/VBR 16KBIT/S~12MBIT/S |
| Video frame rate | 5- 60 fps, maximum 1080 60fps |
| OSD | Text, Image |
| Audio | |
| Input selection | 4 channel embedded audio hdmi, 4 channel 3.5MM independent audio, support audio gain |
| Audio coding | AAC/ MP2/MP3/ G.711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100,48000 etc |
| IP output | 1 Gigabit Ethernet for transmission, 1RJ 100M port for configuration Dual bitrate standard TS stream. |
| System | |
| Network protocol | SRT,HTTP, RTSP, RTMP, RTMPS,ONVIF, HLS,SRT,UDP multicast, unicast |
| Configuration management | User interface, remote upgrade, Andriod APP, multi-one management platform |
| Power supply | 12V~2A |
| power consumption | 5W |
| Size | 100mm x 250mm x 35mm (L*W*H) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
