32 Channel HD SD H.264 H265 IPTV Video Encoder HD RTSP Streaming Encoder

Short Description:


Product Detail

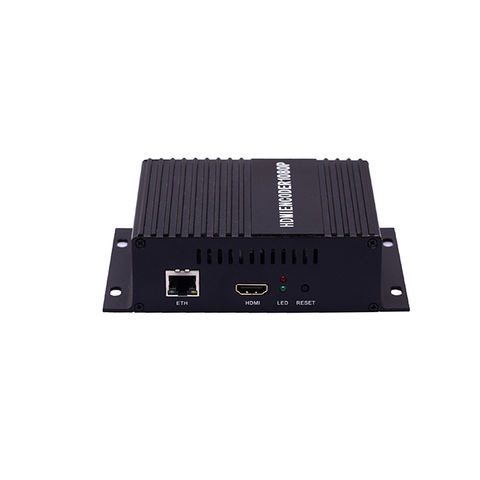

Product model HD HDMI encoder
Input 1 HDMI input, 1 3.5MM channel audio input
Output 1 channel IP signal output
Video
Input resolution 1920x1080p/1920x1080i/1280x720p/720*576i/720*576p /640*480iAnd other conventional resolution
Coding standard H.265/H.264
Coding level H.265 main profile       H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE
  Encoded size 640*360~1920*1080(Can customize)
Video bit rate Rate control: CBR/VBR 16KBIT/S~12MBIT/S
Video frame rate 30
OSD Character, images
Audio
Input selection 1 channel embedded audio hdmi, 1 channel 3.5MM independent audio support audio gain
Audio coding AAC/MP3/G711
Audio bit rate 64Kb/s~384Kb/s
Sampling rate 32000,44100,48000 etc
IP output 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol
System
Network protocol Supports HTTP, RTSP, RTMP, UDP, multicast, unicast
Configuration management Support IE configuration, remote upgrade
The common use
Power supply 12V~2A
power consumption 5W
Size 103mm * 70mm * 25mm(length*width*height)
Operating temperature -20℃+ 60℃
Working humidity <90%,Non-condensing
Weight 0.18KG
