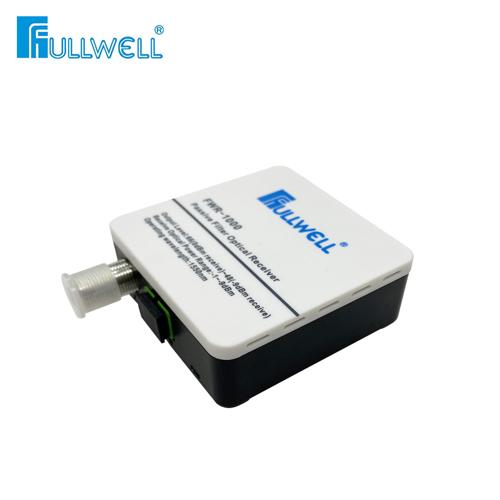

XGS-pon Mini small white plastic shell CATV passive filter optic receiver optic node for smart hotel solution
Short Description:
| Item | |
| Unit | Performance Parameter |
| Optical characteristic | |
| input wavelength | |
| (nm) | 1310,1490,1550(Customized 1270,1577) |
| operation wavelength | |
| (nm) | 1550±10 |
| channel separation | |
| (dB) | ≥40(1310/1490nm and 1550nm ) |
| response | |
| (A/W) | ≥0.9 |
| receive power range | |
| (dBm) | 0~-12(-1~-6 recommended) |
| reflection loss | |
| (dB) | ≥45 |
| fiber linker | |
| / | SC/APC |
| RF characteristic | |
| Bandwidth/flatness | |
| MHz/dB | 47-1000/≤±2 |
| output level | |
| dBuv | 66(0dbBm receive) -48(-9 dBm receive) |
| RF output interface | |
| / | 1 way output |
| CNR/MER | |
| dB | ≥44/34(0dBm),≥38/29dBm(-6dBm) |
| CTB/CSO/HUM | |
| dB | ≥70/≥66/≥60(-3dBm/60dBuv) |
| Other requirement | |
| working/storage temperature | |
| ℃ | -35~50/-40~75(humidity 5~90%) |
| size | |
| mm | 78×60×22.5 |
