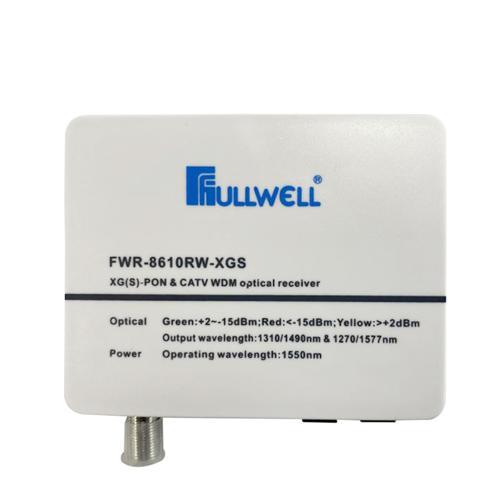

FWR-XGS-8610RW Wdm Optical Receiver work with XGS-PON Network
Short Description:
| Item | |
| Unit | |
| Performance Parameter | |
| Input wavelength | |
| (nm) | |
| 1310,1490,1550（XG(S)-PON,1270/1577nm） | |
| Output wavelength | |
| (nm) | |
| 1310,1490 (XG(S)-PON,1270/1577nm) | |
| Operation wavelength | |
| (nm) | |
| 1540～1560 | |
| Channel separation | |
| (dB) | |
| ≥40（1310/1490nm and 1550nm ) | |
| Response | |
| (A/W) | |
| ≥0.9 | |
| Receive power range | |
| (dBm) | |
| +2～-18 | |
| Reflection loss | |
| (dB) | |
| ≥55 | |
| Fiber linker | |
| / | |
| SC/APC | |
| PON linker | |
| / | |
| SC/UPC(or SC/APC) | |
| Bandwidth/flatness | |
| MHz/dB | |
| 47-1000/≤±1 | |
| Output level | |
| dBuv | |
| 1 RF | AGC: 82±1/(-2～--12dBm) |
| 2RF（Can be customized） | AGC: 78±1/(-2～--12dBm) |
| Output level adjustable Range | |
| dB | |
| 0～15（Can be customized） | |
| Reflection loss | |
| dB | |
| ≥14（75Ω characteristic impedance） | |
| RF output interface | |
| / | |
| Inch (one way output)（Can be customized two ways output） | |
| CNR | |
| dB | |
| ≥44/34(PAL-D 60CH,OMI3.8%,-9dBm) | |
| CTB | |
| dB | |
| ≥65/≥60/≥60(-1dBm receive) | |
| Power supply/consumption | |
| V/W | |
| AC100～240V→DC5/3 | |
| Working/storage Temperature | |
| ℃ | |
| -35～50/-40～75(humidity 5～90%) | |
| Size | |
| mm | |
| 95×92×23 |
