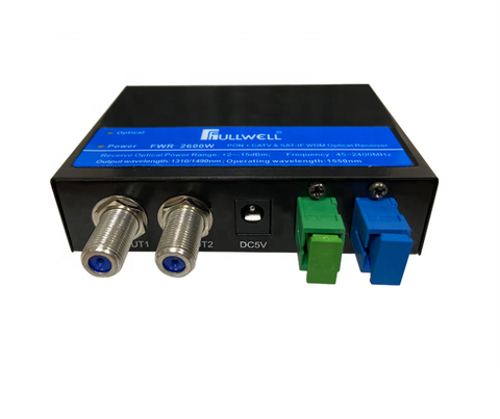

Australia hot-selling type 10G-pon XGS-PON ng-pon AGC Digital TV Satellite Optic receiver with 2RF
Short Description:
| Item | |
| Description | Remark |
| Input Optical Power Range | |
| -15~+2dBm | |
| AGC:-12~-2 dBm | |
| Responsivity | |
| ≥0.9A/W | |
| Optical Return Loss | |
| ≥45dB | SC/APC |
| Receive Wavelength | |
| 1260~1600nm | |
| Frequency Range | |
| 45-2400MHz | CATV &SAT-IF |
| CATV | |
| Flatness | |
| ±1.0dB(47~1000MHz) | |
| Output Level | |
| ≥78dBμV | -12~-2 dBm/AGC |
| CNR/CSO/CTB | |
| ≥50dB/≥60dB/≥65dB | -1dBm input power |
| MER/BER | |
| ≥32(64QAM)/≤1×10-4 | -12dBm |
| Return Loss | |
| ≥14dB(47~1000MHZ) | Output Impedance/75Ω |
| AGC Stability | |
| ±1dB(-12~-2 dBm) | |
| SAT-IF | |
| Flatness | |
| ±1.5dB(1000~2400MHz) | It varies with the input level. |
| Output Level | |
| 78 dBuv | -12~-2 dBm/AGC |
| Return Loss | |
| ≥10dB(1000~2150MHz) | Output Impedance/75Ω |
| AGC Stability | |
| ±1dB(-12~-2 dBm) | |
| RF Connector | |
| Inch (two way output) | |
| Optical Connector | |
| SC/APC | |
| Power Supply | |
| 5V/500mA | outlay AC90~255V→DC5V |
| Power Consumption | <2W |
| Working / storage temperature | |
| -5~45℃/-25~75℃ | 5~90(Non-condensation) |
| Dimensions | |
| 92×80×25mm | Iron box structure |
