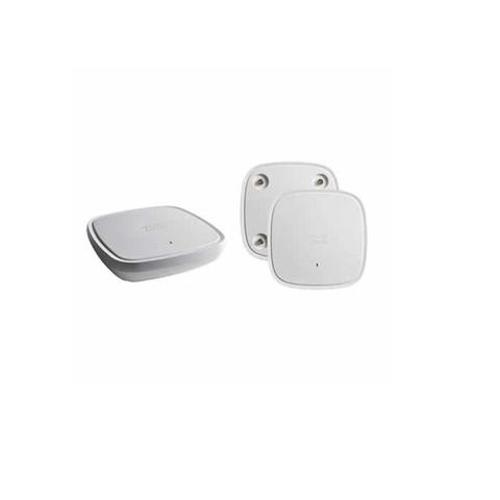

Cis co Wireless Access Point Internal Antenna C9120AXI-H For Etherprise
Short Description:
| C9120AXI-H Specification | |
| Description | Cisco Catalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, H Domain |
| Software | ● Cisco Unified Wireless Network Software Release 8.9.x or later● Cisco IOS ® XE Software Release 16.11 with AP Device Pack, or later |
| Supported wireless LAN controllers | ● Cisco Catalyst 9800 Series Wireless Controllers● Cisco 3500, 5520, and 8540 Series Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | ● 4x4 MIMO with four spatial streams● Maximal Ratio Combining (MRC)● 802.11n and 802.11a/g beamforming● 20- and 40-MHz channels● PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)● 802.11 Dynamic Frequency Selection (DFS)● Cyclic Shift Diversity (CSD) support |
| 802.11ac | ● 4x4 downlink MU-MIMO with four spatial streams● MRC● 802.11ac beamforming● 20-, 40-, 80-, and 160-MHz channels● PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)● 802.11 DFS● CSD support |
| 802.11ax | ● 4x4 downlink MU-MIMO with four spatial streams● Uplink/downlink OFDMA● TWT● BSS coloring● MRC● 802.11ax beamforming● 20-, 40-, 80-, and 160-MHz channels● PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)● 802.11 DFS● CSD support |
| Integrated antenna | Flexible radio (either on 2.4GHz or on 5GHz)● 2.4 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth● 5 GHz, peak gain 5 dBi, internal antenna, omnidirectional in azimuthDedicated 5GHz radio● 5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | ● Cisco Catalyst 9120E Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)● Cisco Catalyst 9120P Access Points) are certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) with theAIR-ANT2513-P4M-N= antenna● Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios● Supports Self-Identifiable Antennas (SIA) on one RP-TNC port |
| Smart Antenna Connector | ● Available on the 9120E and on the 9120P only● Compact multi RF connector with DART interface● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector when used with antennas with RP-TNC connector● Required when running the flexible radio as either a second 5-GHz serving radio or a Wireless Security Monitoring radio |
| Interfaces | ● 1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz● Management console port (RJ-45)● USB 2.0 @ 3.75W (enabled via future software) |
| Indicators | ● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | ● Access point (without mounting brackets): C9120I: 8.5 x 8.5 x 1.7” (21.6 x 21.6 x 4.3 cm) |
| Input power requirements | ● 802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)● Cisco power injector, AIR-PWRINJ6=● 802.3af PoE● Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af) |
| Environmental | Cisco Catalyst 9120AXI● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)● Nonoperating (storage) altitude test: 25˚C, 15,000 ft.● Operating temperature: 32° to 122°F (0° to 50°C)● Operating humidity: 10% to 90% (noncondensing)● Operating altitude test: 40˚C, 9843 ft. |
| System memory | ● 2048 MB DRAM● 1024 MB flash |
| Available transmit power settings | 2.4 GHz● 23 dBm (200 mW)● 20 dBm (100 mW)● 17 dBm (50 mW)● 14 dBm (25 mW)● 11 dBm (12.5 mW)● 8 dBm (6.25 mW)● 5 dBm (3.13 mW)● 2 dBm (1.56 mW)● -1dBm (0.79mW)● -4dBm(0.39mW)5 GHz● 26 dBm (400 mW)● 23 dBm (200 mW)● 20 dBm (100 mW)● 17 dBm (50 mW)● 14 dBm (25 mW)● 11 dBm (12.5 mW)● 8 dBm (6.25 mW)● 5 dBm (3.13 mW)● 2 dBm (1.56 mW)● -1dBm (0.79mW) |
| Frequency band and 20-MHz operating channels | H (H regulatory domain):● 2.412 to 2.472 GHz; 13 channels● 5.180 to 5.320 GHz; 8 channels● 5.745 to 5.825 GHz; 5 channels |
