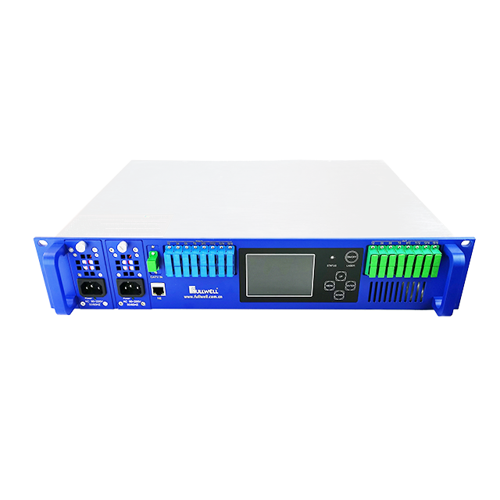

FTTH High Power GPON XGS-PON Fiber 16 Port 1550nm CATV WDM EDFA Optical Amplifier Price
Short Description:
| Items | |
| Unit | Performance Index |
| Optical Operating Wavelength | |
| nm | 1535～1565 |
| Input Optical Power Range | |
| dBm | -10～+10 |
| Noise Ratio | |
| dB | ≤5.0 (0 dBm,@1550nM) |
| Gain Flatness | |
| dB | ＜±0.3 |
| Optical Power Output Stability | |
| dB | ＜±0.5 |
| Polarization Sensitivity | |
| dB | ＜0.2 |
| Polarization Mode Dispersion | |
| Ps | ＜0.5 |
| Input End Pump Leakage Power | |
| dB | ≤-30 |
| Output End Pump Leakage Power | |
| dB | ≤-30 |
| Optical Input, Output Return Loss | |
| dB | ＞45（APC Stepped Face） |
| Pump Operating Number | |
| PCs | 2～5 |
| Rated Output Power | |
| dBm | 0～23 |
| Linker(IN) | |
| - | SC/APC |
| Linker(OUT) | |
| - | LC/APC or SC/UPC |
| Power Supply/Consumption | |
| V/W | 110/220VAC or 48VDC |
| Operating/Storage Temperature | |
| ℃ | -20～65/-30～70 |
| Operating/Storage Humidity | |
| % | 5～90 |
| Case Size | |
| mm | 530×486×88 (2U) |
| Network Management Connector | |
| / | RJ45(following national network management standard, supports WEB) |
| XG(S)- PON Wavelength | |
| nm | 1310/1490 & 1270/1577 |
| XG(S)- PON Linker | |
| / | LC/UPC or SC/UPC |
| Uplink optical ports | |
| pcs | 16 |
| Output ports | |
| Pcs | 16 |
| XG(S)- PON Insertion Loss | |
| dB | ＜1.2 |
| 1550 Port Insertion Loss | |
| dB | ＜0.7 |
| Optical isolation between CATV&OLT | |
| dB | 40 |
| Optical Switch | |
| Insertion Loss | |
| dB | ＜1 |
| Harass | |
| dB | ＜-60 (isolation between A and B) |
| Switch Time | |
| ms | ＜10 |
| Switched Power Threshold Range | |
| dBm | -5～10 |
