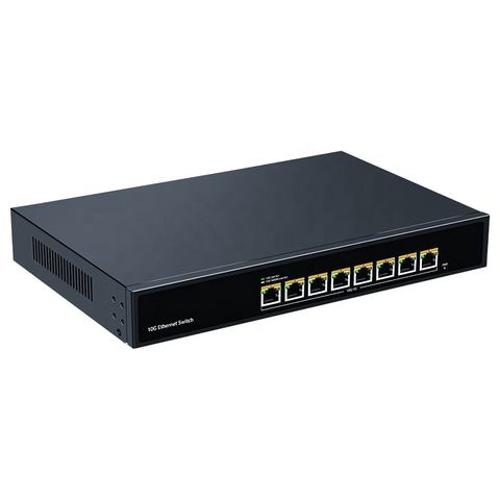

10GbE Switch,8 x 10G RJ45 Base-t Port 160G Bandwidth,Plug and Play Unmanaged 10G Network Switch
Short Description:
| I/O Interface | AC100-240V 50/60Hz |
| Ethernet Port | 8* 10G Ethernet ports |
| Chip | RTL9303+RTL8261N |
| Exchange capacity | 160Gbps |
| Packet Forwarding Rate | 119.04Mpps |
| RAM | 128 MByte |
| Flash Memory | 16MByte |
| Memory Cache | 12MBit |
| MAC Address | 16K |
| Jumbo frame | 12Kbyte |
| MTBF | 100,000 hour |
| Network Protocol | IEEE802.3 (Ethernet)IEEE802.3u (Fast Ethernet)IEEE 802.3ab (Gigabit Ethernet)IEEE 802.3az (Efficient and energy-saving Ethernet)IEEE 802.3ae (10G Ethernet)IEEE802.3x (Flow control)IEEE802.3 bz (2.5G/5G Ethernet standard) |
| Industry standards | EMI: FCC 47 CFR Part 15 Subpart B (Class A)EMS: EN61000-4-2 (ESD),EN61000-4-5 (Surge) |
| Network Medium | 100Base-TX : Cat5 or above UTP(≤100m)1000Base-TX : Cat5 or above UTP(≤100m)10000Base-TX : Cat7 or above UTP(≤100m) |
| Safety certification | CE, FCC, RoHS |
| Working environment | Working temperature: - 10~50 ° CStorage temperature: - 40~70 ° CWorking humidity: 10%~90%, non condensingStorage humidity: 5%~95%, non condensing |
| Power light | PWR(Power indication) |
| PWR (Power light) | On: Powered onOff: Powered off |
| Port LED light (green) | On: 5G/10G link connection is normalFlashing: Data transmission is normalOff: Link not working |
| Port LED (yellow) | On: 100/1000M link connection is normalFlashing: Data transmission is normalOff: Link not working |
| Supply voltage | Working voltage: AC100-240 V, 50/60HzPower supply: 12V8A |
| Power comsumption | Total Power:38.6W |
| Packing list | 1 switch, 1 manual, 1 certificate of conformity, 1 power cord, 1 pair of rack ear |
