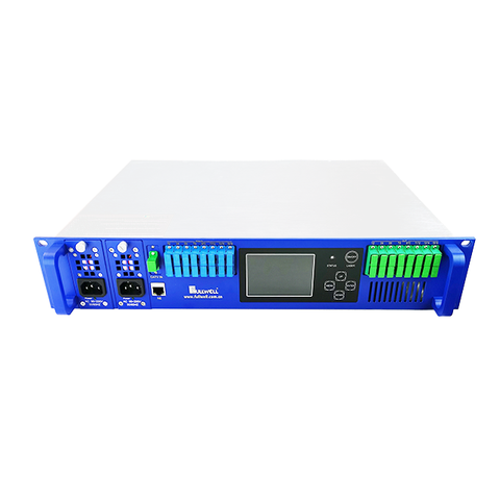

XPON/XGS-PON and 1550nm CATV EDFA 16 PORT
Short Description:
| item | value |
| Model Number | FWA20P-1550H-16 |
| Type | EDFA |
| Place of Origin | China |
| Zhejiang | |
| Brand Name | FULLWELL |
| Use | FTTH |
| Warranty Time | 24 Months |
| Name | catv combiner / CWDM Optical Amplifier/PON + CATV input EDFA |
| CATV Operation wavelength | 1530~1565nm |
| OLT pass wavelength | 1490nm/1310nm |
| FTTx PON Technology | EPON /GEPON, GPON, BPON |
| CATV input power | -5~+10 dBm |
| Difference of each output power | -0.5~+0.5dB |
| Output power adjustable range | -3~0dBm |
| Noise figure (Pin=0dBm) | 4.5~5.0dB |
| Opticalconnector(IN/OUT) | SC/PC ,SC/APC, LC/APC |
| SNMP network management interface | RJ45 |
