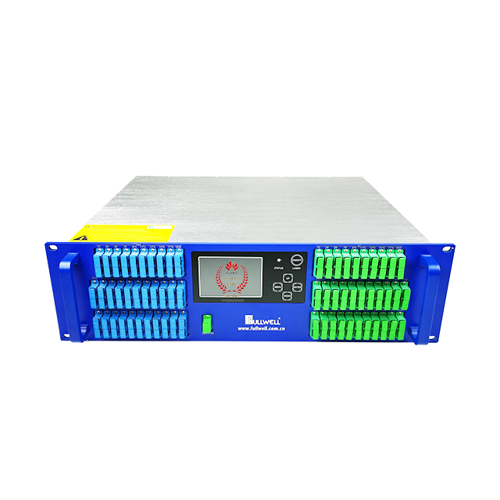

FTTH Triply-play Optical Amplifier with 64 PON ports EDFA
Short Description:
| Model Item | FWAP-1550H-32X19 |
| Operating wavelength (nM) | 1545~1555 |
| Input optical power(dBm) | -10~+10 |
| Nominal input optical power (dBm) | +3 |
| Noise figure (dB) (+3 dBm,@1550nM) | 5.0~6.0 |
| Gain flatness(dB) | <±0.3 |
| Stability of output optical power (dB) | <±0.5 |
| Polarization sensitivity (dB) | <0.2 |
| Polarization modal dispersion (ps) | <0.5 |
| Optical connector(IN/OUT) | SC/APC |
| Pump work quantity (N) | 4 |
| Saturated output power (dBm) | more than 27dBm |
| Power supplies (Vac) | 115~265(draw-out plug) |
| Power supplies (Vdc) | 48(draw-out plug)-optional |
| Operating temperature (℃) | 0~50 |
| Size (mm) | 88×482.6×387 |
| WDM-PON with optical path | |
| PON port operating wavelength (nm) | 1310/1490 |
| PON port insertion loss (dB) | <1 |
| 1550 port insertion loss (dB) | <0.5 |
