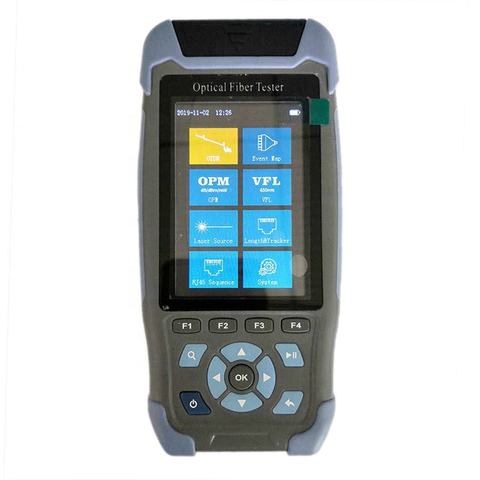

Multifunction Optical Fiber Tester Mini OTDR with Optical Power Meter OPM VFL Light Source
Short Description:
| Model | |
| NK3200S | NK3200D |
| Wavelength | |
| 1550nm±20nm | 1310nm/1550nm±20nm |
| Fiber Type | Singlemode |
| Dynamic Range | |
| 22dB | 24dB/22dB |
| Event Blind Zone | 3m |
| ATT Blind Zone | 8m |
| Test Range | 500m~60km |
| Pulse Width | 3ns~10us |
| Ranging accuracy | ±(1m+ Sampling interval +0.005%×Test distance) |
| Loss accuracy | ±0.05dB/dB |
| Sampling Points | 16k~128k |
| Sampling resolution | 0.05m~8m |
| Reflection accuracy | ±3dB |
| Data Storage | Internal:≥600;External:TF Card |
| Laser Safety Level | Class Ⅱ |
| File format | SOR Standard file format |
| Connector | FC/UPC(Interchangeable SC,ST) |
| Wave Range | 800nm~1700nm |
| Interface Type | Universal Joint FC/SC/ST |
| Test Range | -50dBm~+26dBm |
| Uncertainty | ±5% |
| Frequency Identification | CW/270/330/1k/2kHz |
| Calibration wavelength | 850/980/1300/1310/1490/1550/1625/1650nm |
| LD Type | FP-LD |
| Wavelength | |
| 1550nm±20nm | 1310nm/1550nm±20nm |
| Output Power | ≥-5dBm |
| Modulation Frequency | 270/330/1k/2kHz |
| Stability | CW,±0.5dB/15min (Test after 15 minutes of preheating) |
| Connector | FC/UPC(Interchangeable SC,ST) |
| Wavelength | 650nm±20nm |
| Output Power | ≥10mW |
| Mode | CW/1Hz/2Hz |
| Connector | FC/SC/ST |
| Test Range | 300m |
| Display | 3.5 inch Color LCD |
| Data Interface | Micro USB |
| External storage | TF Card |
| Power Supply | Polymer Li-Battery:3.7V,4000mAh Adapter:5VDC,2A |
| Battery Life | Standby>20h;Measuring time>12h |
| Operating Temperature | -10℃~+50℃ |
| Storage Temperature | -40℃~+70℃ |
| Relative Humidity | 0~95%Non Condensing |
| Size | 173mm×82mm×37mm |
| Weight | ≤350g |
