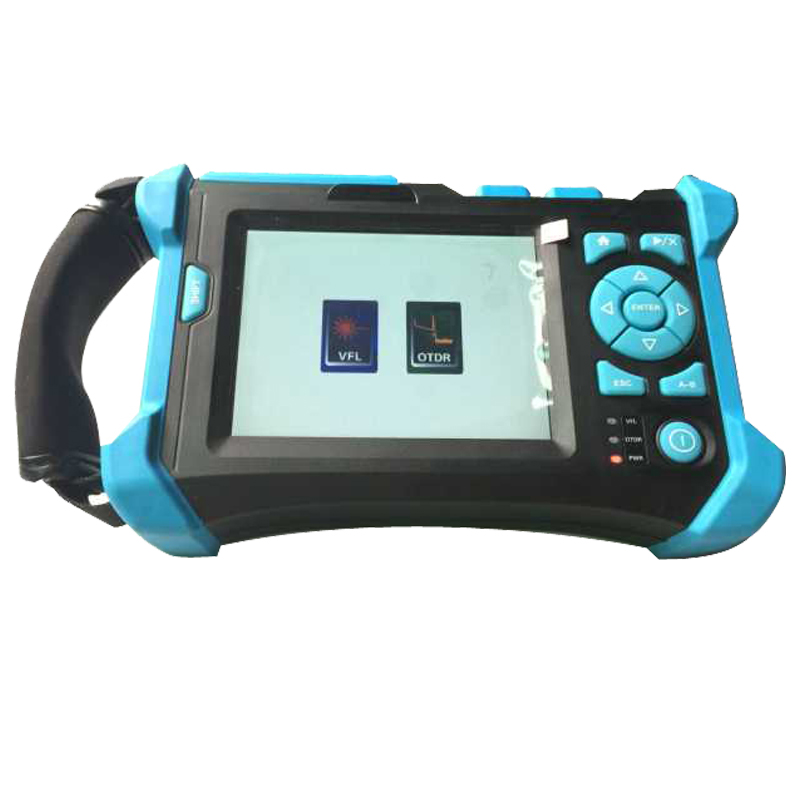

Easy operating 120km USD singlemode mini fiber optic cable otdr fibra
Short Description:
| Pulse Width | |
| (SM 1310/1550NM) 5ns 10ns 20ns 50ns 100ns 500ns 1μs 2μs 5μs 10μs :(MM 850/1300NM) 5ns,10ns,20ns,50ns,100ns,500ns,1us | |
| Distance Range | |
| (SM 1310/1550NM) Dead zone test, 1.3km, 2.5km, 5.0km, 10km, 20km, 40km, 80km, 120km,(MM 850/1300NM):100m,400m,1.3km,2.5km,5km,10km,20km,40km,80km | |
| Sampling Resolution | |
| Minimum 0.05m | |
| Sampling Point | |
| 128,000 | |
| Linearity | |
| ≤0.05dB/dB | |
| Loss Threshold | |
| 0.01dB | |
| Loss Resolution | |
| 0.001dB | |
| Distance Resolution | |
| 0.01m | |
| Distance Accuracy | |
| ±(1m+measuring distance×3×10 +sampling resolution) | |
| Data Storage | |
| 20000 groups of curve | |
| VFL | |
| 10mW,CW/2Hz | |
| Interface | |
| 3 USB ports(Type A×2,Type B×1) | |
| Display | |
| 5.6 inch TFT-LCD, Touching screen | |
| Battery | |
| 7.4V/4.4Ah lithium battery , support 8 hours continuous working | |
| Working conditions | |
| Working Temp:-10℃~+50℃;Storage Temp:-20℃~+70℃;Humitity :≤95%(non-dew) | |
| Dimensions/Weight | |
| 253×168×73.5mm / 1.5kg(include battery) | |
| Packing list | |
| Straps; Adaptor; Lithium battery; FC connector; USD Cable; User Guide; CD; softbag; cleaning cotton |
