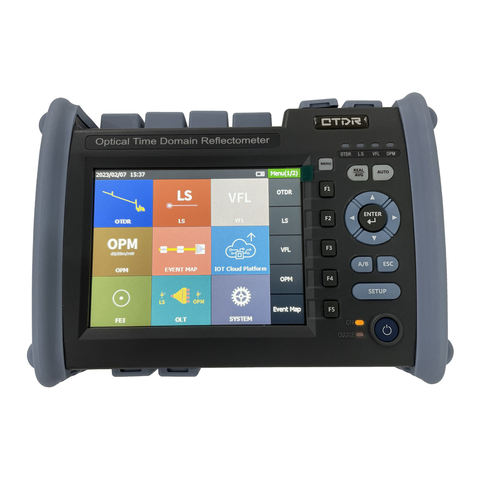

1310/1550nm SM MM Multi-function fiber optic OTDR with VFL LS and OPM function Optical Time Domain Reflectometer Tester
Short Description:
| Product name | OTDR |
| displaying | 5.6 inch color LCD,touch screen |
| Wavelength | 1310/1550nm |
| Dynamic range | 38/36dB |
| Dead Zone(Event) | 1m |
| Dead Zone(Attenuation) | 6m |
| Measurement Range | 500m/1km/2km/4km/8km/16km/32km/64km/128km/256km |
| Pulse width | 5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/20000ns |
| Range accuracy | ±(0.75m+sampling interval+0.005%xdistance) |
| Attenuation measurement accuracy | ±0.05dB/dB |
| Reflection measurement accuracy | ±3dB |
| Data storage | ≥2000 |
| Optical Intereface | FC/PC(SC interchangeable) |
| Data Intereface | USB,mini-USB,10M/100M--LAN |
| VFL Module | |
| Wavelength | 650±10nm |
| Output power | 10mW |
| OPM Module | |
| Calibration Wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Measurement Range | +26dBm~-50dBm or 6dBm~-70dBm |
| Power supply mode | AC adapter:AC:100V ~ 240V (0.6A), 50/60Hz DC: 18V to 20V (2A) Internal lithium-ion battery pack:7.4V,6700mAh |
| Operation Temperature | -5℃~50℃ |
| Storage Temperature | -20℃~70℃ |
| Relative Humidity | 0~95%no condensation |
| Weight | ≤1.1kg |
| Volume | 227mmx160mmx70mm |
