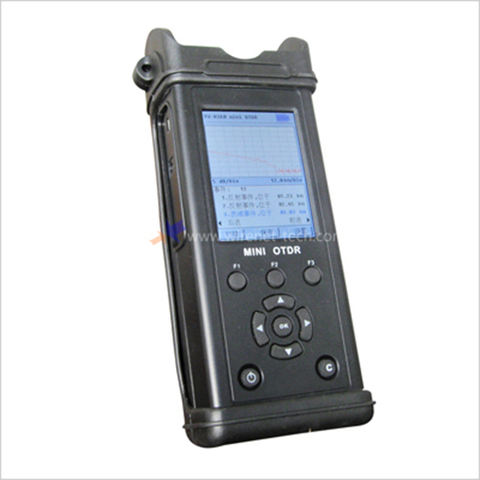

Fiber Optic Equipment Optical Handheld Mini OTDR
Short Description:
| Type | WT-360 mini |
| Application cable | Single mode |
| Connector type | FC/PC |
| Max measure distance | 60km(≥1.0dB) |
| Reflection Event Dead Zone | 15M |
| Distance Accuracy(Reflection Event) | ±( 2m +2*10(-4)*Distance) |
| Input/Output interface | FC,SC,ST(PC) |
| Operating Temperature(°C) | -10 ~+60 |
| Storge Temperature(°C) | -20~+70 |
| Power Supply | Built-in Lithium Battery:7.4V,4400mAh + AC Power Adapter |
| Dimension(mm) | 180×80×48 |
| Weight(kg) | 1 KG |
