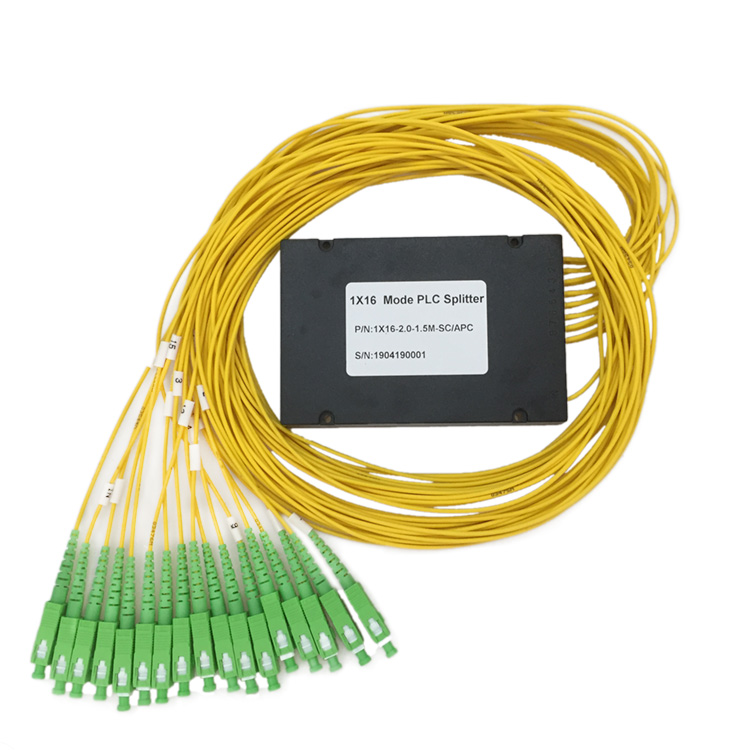

1 2 4 8 12 16 32 way Fiber Optic Coupler PLC Splitter
Short Description:
| Parameter | Specification |
| Operating Wavelength (nm) | 1260--1650 |
| Test Wavelength (nm) | 1310/1550 |
| Type | |
| 1 X 2 | |
| 1 X4 | |
| 1X8 | |
| 1X16 | 1X32 |
| Insertion Loss (dB) Max. | |
| 3.8 | |
| 7.1 | |
| 10.2 | |
| 13.5 | 16.5 |
| Loss Uniformit(dB) | |
| ≤0.4 | |
| ≤0.6 | |
| ≤0.8 | |
| ≤1.2 | ≤1.5 |
| PDL (dB) Max | |
| 0.2 | |
| 0.2 | |
| 0.2 | |
| 0.25 | 0.3 |
| Dimensions (H*W*L)(nm) | |
| 60*7*4 | |
| 60*7*4 | |
| 60*7*4 | |
| 60*12*4 | 80*20*6 |
| Directivity (dB) Min | |
| 55 | |
| 55 | |
| 55 | |
| 55 | 55 |
| Return Loss (dB) Min | |
| 55 | |
| 55 | |
| 55 | |
| 55 | 55 |
| Operating Temperature (℃) | -40~+85 |
| Storage Temperature (℃) | -40~+85 |
| Fiber Length | >1M |
| Tube color | Input: white 0.9mm PVC tube 1M / Output:white 0.9mm PVC tube 1M |
| Fiber Type | G657A1 fiber |
| Connector Type | None |
