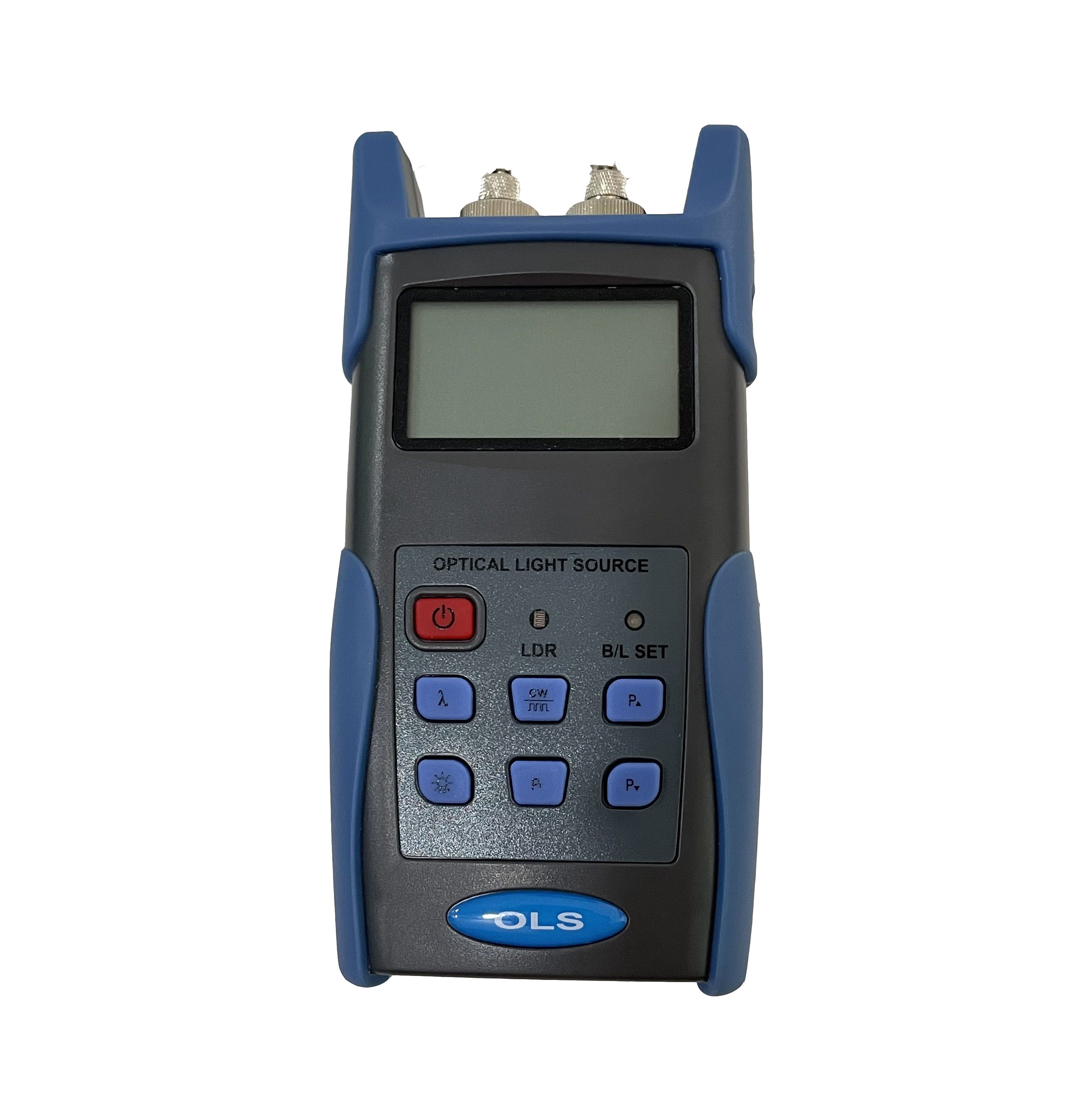

Portable Handheld Adjustable High Stabilization SM Optic Fiber 1310/1550/1625nm Ftth Light Source

Short Description:


Product Detail

Operating wavelength(nm)
1310/1550;1310/1490/1550/1625(others specify on requests)
Applicable fiber
SM,MM
Laser type
FP-LD(others specify on requests)
Output Power(dBm)
-5~-12dBm (can be adjustable)
Adjustable step size(dBm)
<0.5
Stability(dB,30min,20℃)
0.15
Modulation(Hz)
CW, 270,330,1K,2K
Fiber Port
FC/PC
Alkaline Battery
3*AA,1.5V
Power Supply Adaptor(V)
8.4
Battery Operating time(h)
45
Operation Temperature(℃)
-10~+60
Storage Temperature(℃)
-25~+70
Outline size(mm)/weight
180*90*45(250g)

xxxxxxx.
