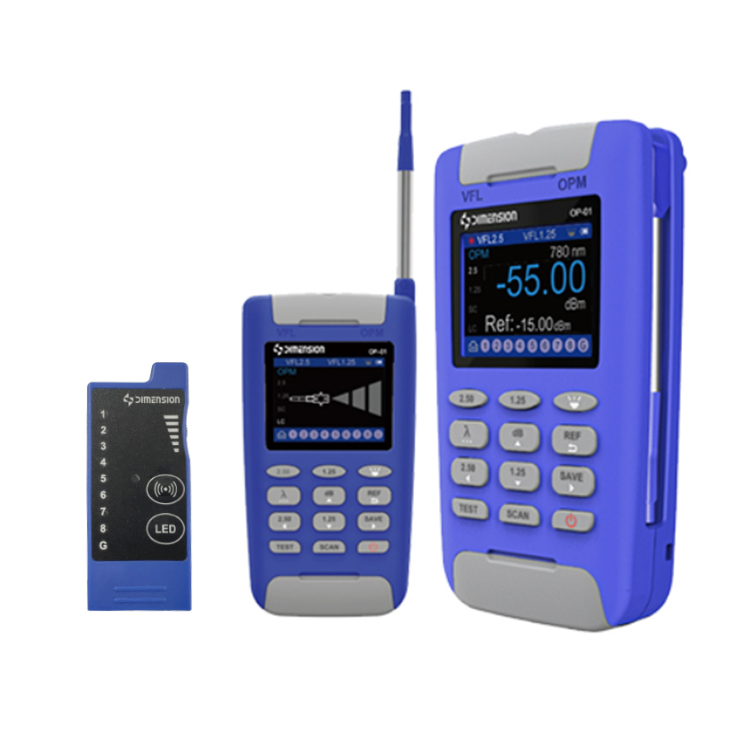

Non contact optical detection equipment multi-function tester for VFL power meter network cable RJ45 line finder OPM
Short Description:
| Optical Power Meter Function* | |
| optical connector | |
| 2.5/1.25 dual universal interface | LC, SC double folding probe probe |
| Detector type | |
| InGaAs | |
| Wavelength range | |
| 780nm~1650nm | |
| Optical power detection range | |
| +6~-70dBm(Typ.) | +6~-55dBm(Typ.) |
| Maximum allowable input optical power | |
| +13dBm | |
| Linearity | |
| ±0.5dB (+5~-60dBm) | ±0.5dB (+5~-50dBm) |
| Repeatability | |
| ±0.05dB | ±1.00dB |
| Uncertainty | |
| ±(5%+500pW) | |
| Measurement type | |
| dBm, dB, mW, uW, nW | |
| Power resolution | |
| 0.01dB | |
| Return loss | |
| >55dB | |
| Storage quantity | |
| 1000 pieces | |
| Fiber Type | |
| SM/MM | |
| Visual fault location VFL | |
| Working wavelength | |
| 650nm±30nm | |
| Output power | |
| ≥1mW | |
| Optical connector | |
| 2.5/1.25 dual universal interface | |
| powered by | |
| Power supply | |
| Built-in rechargeable lithium battery | |
| Working life | |
| >8h |
