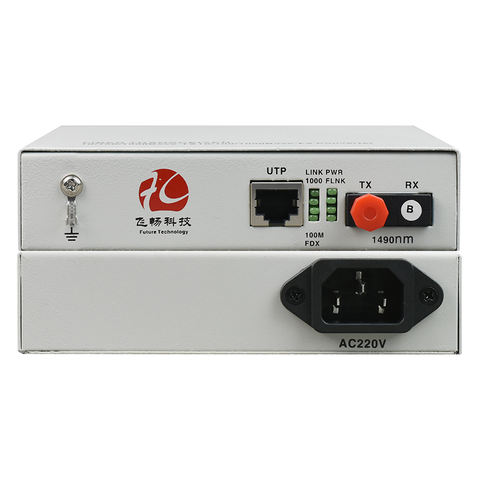

Multi-mode 1 Port UTP Fast Ethernet to Optical Fiber Media Converter
Short Description:
| Ethernet UTP Interface | |
| Interface rate: 10/100 M, half/full duplex auto-negotiation | |
| Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) | |
| MAC Address Capability: 4096 | |
| Connector: RJ45, support Auto-MDIX | |
| Optical Ethernet interface | |
| Wave Length: 1310nm, 1550nm | |
| Interface rate: 100 M, half/full duplex | |
| Interface Standard: Compatible with IEEE 802.3, IEEE 802.1Q (VLAN) | |
| MAC Address Capability: 4096 | |
| Connector: FC/SC | |
| Fiber Transmission Distance is limited by optical circuit loss and additional loss as a result of connectors, fittings and patch panel. Transmission distance may also be limited by fiber optic bandwidth. | |
| Power | |
| Power supply: AC180V ~ 260V;DC –48V;DC +24V | |
| Power consumption: ≤3W | |
| Dimension | |
| Product size : 136 X 131 X 31 mm ( W X D X H) | |
| Simple packaging : 295 X 225 X 84 mm ( W X D X H) | |
| Piece weight : 0.5 KG | |
| Working environment | |
| Working temperature: -10°C ~ 50°C | |
| Working Humidity: 5%~95 % (no condensation) | |
| Storage temperature: -40°C ~ 80°C | |
| Storage Humidity: 5%~95 % (no condensation) |
