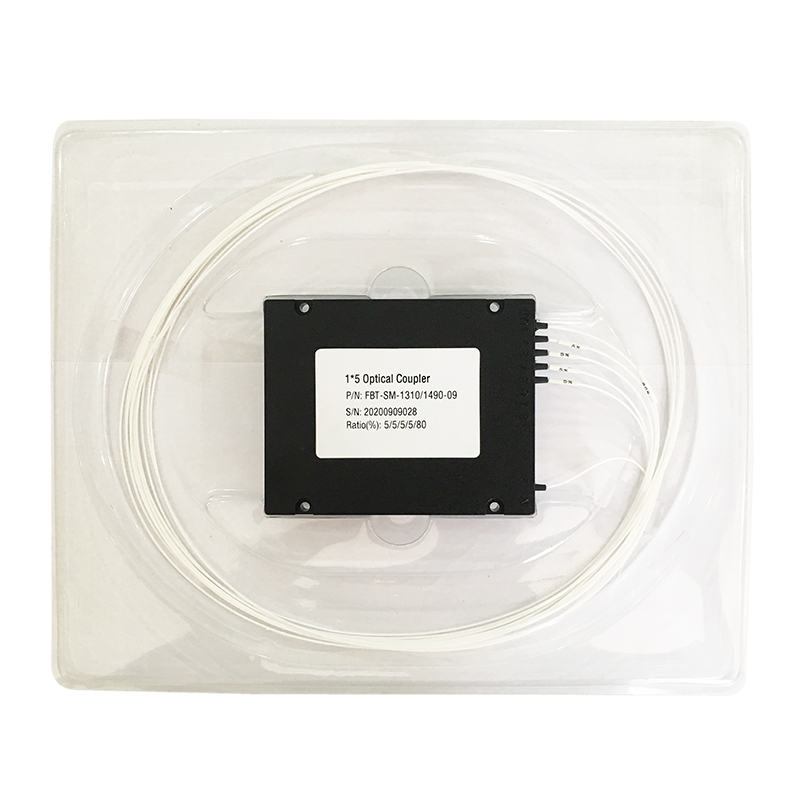

1x3 1x5 1x8 Optical Coupler FBT Fiber Optic Splitter without Connector FBT Splitter
Short Description:
| 1x3 | |
| 1x5 | 1x8 |
| Operation Wavelength | |
| 1310 /1490nm | |
| 1310 /1490nm | 1310 /1490nm |
| Fiber Type | |
| SMF-28e with 0.9mm | |
| SMF-28e with 0.9mm | SMF-28e with 0.9mm |
| Return Loss | |
| ≥50dB | |
| ≥50dB | ≥50dB |
| Directivity | |
| ≥50dB | |
| ≥50dB | ≥50dB |
| Fiber Length | |
| ≥1.0m | |
| ≥1.0m | ≥1.0m |
| Package Dimension(mm) | |
| 100*80*10 | |
| 100*80*10 | 100*80*10 |
| Operating temperature | |
| 40 to -70 ℃ | |
| 40 to -70 ℃ | 40 to -70 ℃ |
| Storing Temperature | |
| 40 to -85 ℃ | |
| 40 to -85 ℃ | 40 to -85 ℃ |
| Connector | |
| none | |
| none | none |
