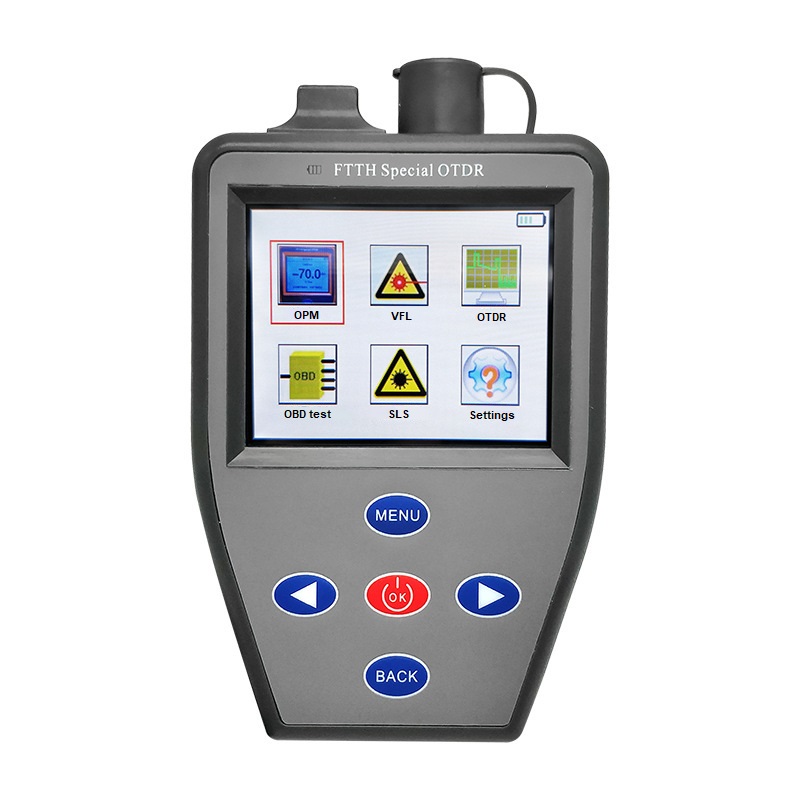

4 in1 FTTH Network CATV Fiber Optic Mini smart Handheld OTDR for broadband fiber installation
Short Description:
| Mini-Pro OTDR | |
| Model | |
| WT-310 | |
| Wavelength | |
| 1550nm or 1610nm | |
| Fiber Type | |
| Singlemode | |
| Event Blind Zone | |
| 3m | |
| ATT Blind Zone | |
| 10m | |
| Test Range | |
| 500m~20km | |
| Pulse Width | |
| 10,30,100,300ns, 1,3,6us | |
| fiber port | |
| SC | |
| testing accuracy | |
| 10% | |
| testing length (event) | |
| 50km | |
| tesngting lenth (attenuation) | |
| 30km | |
| Data Storage | |
| Internal:≥600;External:TF Card | |
| woring temperature | |
| -10~50 degrees | |
| Connector | |
| SC/UPC | |
| OPM | |
| Wave Range | |
| 800nm~1625nm | |
| Interface Type | |
| Universal Joint SC | |
| Test Range | |
| -50dBm~+26dBm(-70~+6) | |
| Uncertainty | |
| ±5% | |
| Frequency Identification | |
| CW/270/330/1k/2kHz | |
| Calibration wavelength | |
| 850/980/1300/1310/1490/1550/1625/1650nm | |
| LS | |
| LD Type | |
| FP-LD | |
| Wavelength | |
| 1550 | |
| Output Power | |
| ≥-10dBm | |
| Modulation Frequency | |
| 270/1k/2kHz | |
| Connector | |
| SC | |
| VFL | |
| Wavelength | |
| 650nm±20nm | |
| Output Power | |
| ≥10mW | |
| Mode | |
| CW/1Hz/2Hz | |
| Connector | |
| FC/SC/ST | |
| Other Parameters | |
| Dimention | |
| 12.5*9.3.3cm | |
| Power Supply | |
| Polymer Li-Battery:3.7V,4000mAhAdapter:5VDC,2A | |
| Battery Life | |
| Measuring time>10h | |
| Operating Temperature | |
| -10℃~+50℃ | |
| Storage Temperature | |
| -25℃~+70℃ | |
| Relative Humidity | |
| 0~95%Non Condensing | |
| Weight | |
| ≤350g | |
