HY2412-17I 2.4G Wireless Bridge/AP
HY2412-17I Wide frequency Carrier-grade outdoor Wireless
Bridge/AP.
operates between 2.3-2.4 GHz frequency range to avoid 2.4G
co-frequency interference , 400mW high power radio Frequency Output,
optional external various gain antennas.
HY2412 series is high power Carrier-grade outdoor Wireless Bridge/AP
which operates between 2.3-2.4GHz,
Dynamic frequency select frequency range to avoid 2.4G co-frequency
interference. The device supports the Standards of 802.11b/g/n.
Outstanding Preformance and Features in a Cost-Effective Platform
Ideally suited for bandwidth-hungry applications that require
outdoor long-range wireless communications and large area coverage.
Specification
Key Features：
· Dynamic frequency selection operates between 2.3-2.4 GHz frequency
range to avoid 2.4G co-frequency interference .
· the transmitting power: 400mw ,Power adjustable.
· Automatically adjust the best transfer rate according to signal
strength and transmission distance.
· With automatically omni swept-frequency , Automatically scan and
choice the best channel according to around radio environmental
conditions
· Utilizing distinctive VLAN technology, Improve security for Wi-isolated
node or wireless client public access.
· built in 17dBi directional antenna.
Product information:
|
Model |
HY2412-17I |
|
|
Radio Specifications |
Frequency Band |
2310-2483MHz / 802.11b/g |
|
Modulation |
OFDM/DSSS |
|
|
Data Rates Supported |
6、9、12、18、24、36、48、54、96、108Mbps |
|
|
Radio Mode |
AP / Bridge/ Repeater/ AP+WDS |
|
|
Level display |
Support the reception level status/Antenna proofreading |
|
|
Band scan |
Site scanning and channel detection |
|
|
RF Features |
Transmit Power |
26dBm±1dBm |
|
Receive Sensitivity |
-74dBm@108Mbps/-86dBm@12Mbps/-92dBm@6Mbps |
|
|
Channel Bandwidths |
5/10/20MHZ Selectable |
|
|
Security Features |
Data Security |
WEP/WPA/WPA2/802.1x |
|
Layer 2 isolation |
support hide the network SSID |
|
|
Access Control Lists |
MAC Filtering |
|
|
Network management |
Network |
DHCP Server/DHCP Clinet/Net |
|
QoS manage |
WMM |
|
|
Virtual SSID |
Support Multiple SSID and encryption |
|
|
802.1Q |
support 802.1Q VLAN |
|
|
Remote Configuration Support |
WEB、SNMP、TELNET、SSH |
|
|
Upgrad/ backup |
WEB、TFTP、FTP |
|
|
LED indicator |
high-brightness LED equipment operating status indicator and signal strength indicator |
|
|
Roaming switch |
support intelligent roaming handover algorithm |
|
|
Electric Features |
Power supply |
standard :48V POE remote power supply module |
|
Power Consumption |
14W |
|
|
Interface Type |
Antenna Interface |
1X N-type connector |
|
Network Interface |
standard :1 x
10/100 BaseT Ethernet |
|
|
Device Reset |
hardware reset button |
|
|
Physical Features |
SIZE |
260×260×35 mm |
|
WEIGHT |
23KG |
|
|
Material |
Die-cast aluminum |
|
|
Environmental Features |
Operating Temperature |
-40C～+80C |
|
Operating Relative Humidity |
95% non-condensing |
|
|
Enclosure |
IP67 |
|

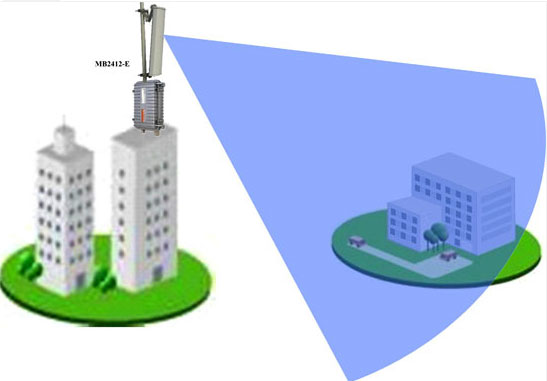

Solutions
|
Outdoor directional coverage ♦ Hotels, residential quarters, commercial buildings and buildings of universities and colleges; ♦ Operators provide WLAN devices to achieve outdoor wireless network coverage; ♦ Open areas including stations, ports, airports, substations, logistics fields, etc.. |
|
|
|
|
|
|
|
.
