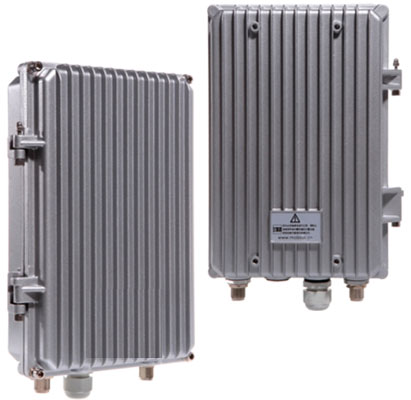

HY24N2-E 2.4G Wireless Bridge/AP

HY24N2-E: Carrier-grade outdoor Wireless Bridge/AP for Point-to-Point and Multipoint Backhaul with speeds up to 300 Mbps ,
External dual Polarity directional antennas,Utilizing MIMO OFDM Radio design, affordable and outstanding performance outdoor wireless bridge /AP.

Specification

Key Features：
· Adaptive modulation in the 2.4-2.483 GHz frequency range, the transmitting
power: 400mw ,Power adjustable;
· There are real time signal LED's on the backs of the access points for alignment assistance, and troubleshooting;
· External dual Polarity directional antennas;
· With strong anti-interference ability and high bandwidth, delivering outstanding performance (up to 300 Mbps) in a weatherproof design;
· Equipped with super-stable built-in watchdog to put an end to crash;
· Equipped with the aluminum anti-collision case; all-weather waterproof and dustproof full-enclosed design; fast and easy installation;
super-strong maintenance-free feature.

Product information:

Model		HY24N2-E
Radio Specifications	Frequency Band	2400-2483MHz / 802.11b/g/n
	Modulation	OFDM/MIMO
	Data Rates Supported	6、9、12、18、24、36、48、54、96、108、150、240、300Mbps
	Radio Mode	AP / Bridge/ AP Repeater/ Wireless client
	Level display	Support the reception level status/Antenna proofreading
	Band scan	Site scanning and channel detection
RF Features	Transmit Power	26dBm±1dBm
	Receive Sensitivity	-75dBm@300Mbps/-74dBm@108Mbps/-86dBm@12Mbps/-92dBm@6Mbps
	Channel Bandwidths	5/10/20/40MHZ Selectable
Security Features	Data Security	WEP/WPA/WPA2/802.1x
	Layer 2 isolation	support hide the network SSID
	Access Control Lists	MAC Filtering
Network management	Network	DHCP Server/DHCP Clinet/Net

	Status display	ARP、Bridge、route 、throughput table
	Virtual SSID	Support Multiple SSID and encryption
	802.1Q	support 802.1Q VLAN
	Remote Configuration Support	WEB、SNMP、TELNET、SSH
	Upgrad/ backup	WEB、TFTP、FTP
	LED indicator	high-brightness LED equipment operating status indicator and signal strength indicator
	Roaming switch	support intelligent roaming handover algorithm
Electric Features	Power supply	48V POE remote power supply module
Electric Features	Power Consumption	8.5W
Interface Type	Antenna Interface	2 X N-type connector
	Network Interface	1 x 10/100 BaseT Ethernet
	Device Reset	hardware reset button
Physical Features	SIZE	265×185×80 mm
	WEIGHT	1.95KG
	Material	Die-cast aluminum
Environmental Features	Operating Temperature	-40C～+80C
	Operating Relative Humidity	95% non-condensing
	Enclosure	IP67

Solutions

HY24N2-E is placed in the middle of the buildings that need to achieve wireless coverage, realizing the coverage of all the buildings nearby.

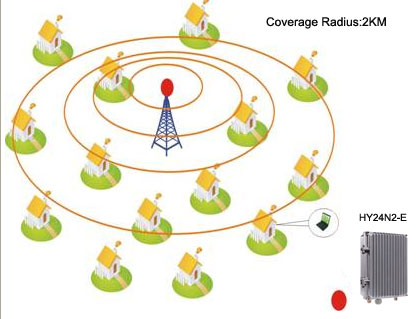

		Outdoor omni-directional coverage ♦ In rural areas, wireless coverage range can be within 3000M with household routers or household network card; ♦ PDA wireless service access at ports and stock dumps; ♦ Coverage in high-grade quarters and villas; ♦ Open areas including stations, ports, airports, schools, substations, etc.; ♦ A single device can support the maximum concurrent users of 40.

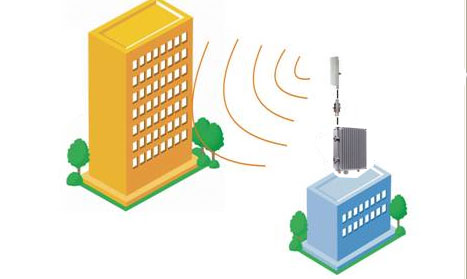

	Outdoor directional coverage ♦ Hotels, residential quarters, commercial buildings and buildings of universities and colleges; ♦ Operators provide WLAN devices to achieve outdoor wireless network coverage; ♦ Open areas including stations, ports, airports, substations, logistics fields, etc.

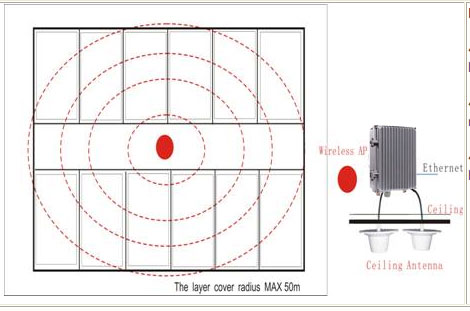

	Indoor omni-directional coverage u ♦ Indoor coverage of double-sided office buildings and hotels; ♦ Semi-open areas coverage of libraries, coffee bars, restaurants, etc.； ♦ Large-scale areas coverage of large conference halls, factories, airport lounges, etc
