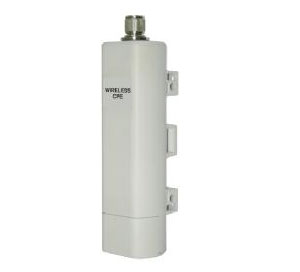

HY24N2-10I 2.4G Wireless AP/CPE
HY24N2-10I Carrier-grade outdoor/indoor integration Wireless AP/CPE for Point-to-Point and Multipoint Backhaul with speeds up to 300 Mbps , he device supports the Standards of 802.11b/g/n. Utilizing MIMO OFDM Radio design, affordable and outstanding performance wireless AP/CPE.
Specification
Key Features：
· Adaptive modulation in the 2.4-2.483 GHz frequency range, the
transmitting power: 400mw ,Power adjustable;
· There are real time signal LED's on the backs of the access points for
alignment assistance, and troubleshooting;
· With strong anti-interference ability and high bandwidth, delivering
outstanding performance (up to 300 Mbps) in a weatherproof design;
· Equipped with super-stable built-in watchdog to put an end to crash;
·built in 10dBi dual-polarized antenna.
Product information:
|
Model |
HY24N2-10I |
|
|
Radio Specifications |
Frequency Band |
2310-2483MHz / 802.11b/g/n |
|
Modulation |
OFDM/MIMO |
|
|
Data Rates Supported |
6、9、12、18、24、36、48、54、96、108、150、300Mbps |
|
|
Radio Mode |
AP / Bridge/ Repeater/ Wireless client |
|
|
Level display |
Support the reception level status/Antenna proofreading |
|
|
Band scan |
Site scanning and channel detection |
|
|
RF Features |
Transmit Power |
28dBm±1dBm |
|
Receive Sensitivity |
-75dBm@300Mbps/-74dBm@108Mbps/-86dBm@12Mbps/-92dBm@6Mbps |
|
|
Channel Bandwidths |
5/10/20/40MHZ Selectable |
|
|
Security Features |
Data Security |
WEP/WPA/WPA2/802.1x |
|
Layer 2 isolation |
support hide the network SSID |
|
|
Access Control Lists |
MAC Filtering |
|
|
Network management |
Network |
DHCP Server/DHCP Clinet/Net |
|
QoS manage |
WMM |
|
|
Virtual SSID |
Support Multiple SSID and encryption |
|
|
802.1Q |
support 802.1Q VLAN |
|
|
Remote Configuration Support |
WEB、SNMP、TELNET、SSH |
|
|
Upgrad/ backup |
WEB、TFTP、FTP |
|
|
LED indicator |
high-brightness LED equipment operating status indicator and signal strength indicator |
|
|
Roaming switch |
support intelligent roaming handover algorithm |
|
|
Electric Features |
Power supply |
standard :12V POE remote power supply module |
|
Power Consumption |
6W |
|
|
Interface Type |
Antenna Interface |
built in 10dBi dual-polarized antenna |
|
Network Interface |
1 x 10/100 BaseT Ethernet |
|
|
Device Reset |
hardware reset button |
|
|
Physical Features |
SIZE |
228×64×61 mm |
|
WEIGHT |
0.6KG |
|
|
Material |
UV/ABS |
|
|
Environmental Features |
Operating Temperature |
-40C～+80C |
|
Operating Relative Humidity |
95% non-condensing |
|
|
Enclosure |
IP67 |
|
Solutions
|
Outdoor directional coverage ♦ Hotels, residential quarters, commercial buildings and buildings of universities and colleges; ♦ Operators provide WLAN devices to achieve outdoor wireless network coverage; ♦ Open areas including stations, ports, airports, substations, logistics fields, etc.. |
|
|
|
|
|
|
|
.
Model
HY24N2-10I 2.4G Wireless Bridge/AP
