HY5812-19I 5.8G Wireless AP/CPE


HY5812-19I:  outdoor Wireless AP  for Point-to-Point and Multipoint Backhaul with 802.11A and  speeds up to 108 Mbps ,  operates at 5GHz,built in high gain directional antenna, Utilizing OFDM/DSSS Radio design, affordable and outstanding performance outdoor wireless Bridge/AP.


Specification



Key Features:
·  HY5812-19I built in 19dBi high gain dual-polarized directional antenna
. support 802.11A with speeds up to 108 Mbps.
· Adaptive modulation in the 5.15-5.85 GHz frequency range, the transmitting power:  400mw  ,Power adjustable;

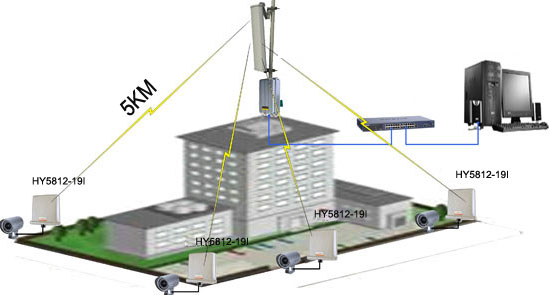

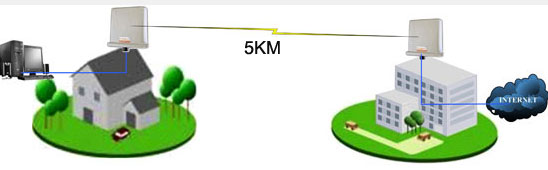

· As terminal point, HY5812-19I up to 5km with  actual throughput approximatelyabout 60Mbps.
· There are real time signal LED's on the backs of the access points for alignment assistance, and troubleshooting;
· Dynamic frequency selection (DFS) to detect and dodge Military radar signal.;
· Automatically adjust the best transfer rate according to signal strength and transmission distance.
· With automatically omni swept-frequency , Automatically scan and choice the best channel according to around radio environmental conditions
· Equipped with super-stable built-in watchdog to put an end to crash;


Product information:


Model

HY5812-19I



Radio Specifications

Frequency Band

5150-5850MHz/802.11A

Modulation

OFDM/DSSS

Data Rates Supported

6、9、12、18、24、36、48、54、96、108Mbps

Radio Mode

AP / Bridge/  AP Repeater/ AP+WDS

Level display

Support the reception level status/Antenna proofreading

Band scan

Site scanning and channel detection

RF Features

Transmit Power

23dBm±1dBm

Receive Sensitivity

-74dBm@108Mbps/-75dBm@54Mbps/-80dBm@24Mbps/-86dBm@18Mbps/-92dBm@6Mbps

Channel Bandwidths

5/10/20MHZ  Selectable

Security Features

Data Security

WEP/WPA/WPA2/802.1x

Layer 2 isolation

support hide the network SSID

Access Control Lists

MAC Filtering









Network management

Network

DHCP Server/DHCP Clinet/Net





Status display

ARP、Bridge、route 、throughput table

Virtual SSID

Support Multiple SSID and encryption

802.1Q

support 802.1Q VLAN

Remote Configuration Support

WEB、SNMP、TELNET、SSH

Upgrad/ backup

WEB、FTP

LED indicator

high-brightness LED equipment operating status indicator and signal strength indicator

Roaming switch

support   intelligent roaming handover algorithm

Electric Features

Power supply

48V POE remote power supply module

Power Consumption

12W

Interface Type

Antenna

Interface

built in 19dBi dual-polarized directional antenna

Network Interface

1 x 10/100 BaseT Ethernet

Device Reset

hardware reset button

Physical Features

SIZE

216×194×50 mm

WEIGHT

0.9KG

Material

ABS

Environmental Features

Operating Temperature

-40C~+80C

Operating Relative Humidity

95% non-condensing

Enclosure

IP67



Solutions










.

Model

HY5812-19I 5.8G Wireless AP/CPE

HY5812-19I 5.8G Wireless Bridge/AP Datasheet.
Download
