HY5812-23 5.8G Wireless AP/CPE
HY5812-23I: outdoor Wireless AP for Point-to-Point and Multipoint Backhaul with 802.11A and speeds up to 108 Mbps , operates at 5GHz,built in high gain directional antenna, Utilizing OFDM/DSSS Radio design, affordable and outstanding performance outdoor wireless Bridge/AP.
Specification
Key Features：
· HY5812-23I built in 19dBi high gain dual-polarized directional
antenna
. support 802.11A with speeds up to 108 Mbps.
· Adaptive modulation in the 5.15-5.85 GHz frequency range, the
transmitting power: 200/400mw ,Power adjustable;
· As terminal point, HY5812-23I up to 8km with actual throughput approximately about 60Mbps.
· There are real time signal LED's on the backs of the access points for
alignment assistance, and troubleshooting;
· Dynamic frequency selection (DFS) to detect and dodge Military radar
signal.;
· Automatically adjust the best transfer rate according to signal
strength and transmission distance.
· With automatically omni swept-frequency , Automatically scan and
choice the best channel according to around radio environmental
conditions
· Equipped with super-stable built-in watchdog to put an end to crash;
Product information:
|
Model |
HY5812-23I |
|
|
Radio Specifications |
Frequency Band |
5150-5850MHz/802.11A |
|
Modulation |
OFDM/DSSS |
|
|
Data Rates Supported |
6、9、12、18、24、36、48、54、96、108Mbps |
|
|
Radio Mode |
AP / Bridge/ AP Repeater/ AP+WDS |
|
|
Level display |
Support the reception level status/Antenna proofreading |
|
|
Band scan |
Site scanning and channel detection |
|
|
RF Features |
Transmit Power |
26dBm±1dBm |
|
Receive Sensitivity |
-74dBm@108Mbps/-75dBm@54Mbps/-80dBm@24Mbps/-86dBm@18Mbps/-92dBm@6Mbps |
|
|
Channel Bandwidths |
5/10/20MHZ Selectable |
|
|
Security Features |
Data Security |
WEP/WPA/WPA2/802.1x |
|
Layer 2 isolation |
support hide the network SSID |
|
|
Access Control Lists |
MAC Filtering |
|
|
Network management |
Network |
DHCP Server/DHCP Clinet/Net |
|
|
|
|
|
Status display |
ARP、Bridge、route 、throughput table |
|
|
Virtual SSID |
Support Multiple SSID and encryption |
|
|
802.1Q |
support 802.1Q VLAN |
|
|
Remote Configuration Support |
WEB、SNMP、TELNET、SSH |
|
|
Upgrad/ backup |
WEB、FTP |
|
|
LED indicator |
high-brightness LED equipment operating status indicator and signal strength indicator |
|
|
Roaming switch |
support intelligent roaming handover algorithm |
|
|
Electric Features |
Power supply |
48V POE remote power supply module |
|
Power Consumption |
12W |
|
|
Interface Type |
Antenna Interface |
built in 23dBi dual-polarized directional antenna |
|
Network Interface |
1 x 10/100 BaseT Ethernet |
|
|
Device Reset |
hardware reset button |
|
|
Physical Features |
SIZE |
260×260×35mm |
|
WEIGHT |
3.5KG |
|
|
Material |
ABS |
|
|
Environmental Features |
Operating Temperature |
-40C～+80C |
|
Operating Relative Humidity |
95% non-condensing |
|
|
Enclosure |
IP67 |
|

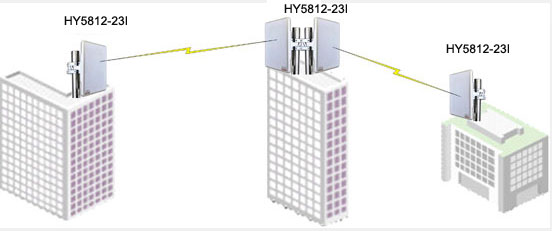

Solutions
 |
|
|
.
Model
HY5812-23I 5.8G Wireless AP
