HY58N1-E 5.8G Wireless Bridge
HY58N1-E: Carrier-grade outdoor Wireless Bridge for
Point-to-Point and Multipoint Backhaul with speeds up to 300 Mbps ,
operates at 5GHz,,Utilizing OFDM/ MINO
Radio design, affordable and outstanding performance outdoor
wireless bridge /AP.
Specification
Key Features：
· Adaptive modulation in the 5.80-5.825 GHz frequency range, the
transmitting , power: 400mw ,Power adjustable;
· There are real time signal LED's on the backs of the access points for
alignment assistance, and troubleshooting;
· The device supports the Standards of 802.11b/g/n with speeds up to 300
Mbps;
· Automatically adjust the best transfer rate according to signal
strength and transmission distance.
· With automatically omni swept-frequency , Automatically scan and
choice the best channel according to around radio environmental
conditions
· Equipped with super-stable built-in watchdog to put an end to crash;
· Equipped with the aluminum anti-collision case; all-weather waterproof
and dustproof full-enclosed design; fast and easy installation;
super-strong maintenance-free feature.
Product information:
|
Model |
HY58N1-E |
|
|
Radio Specifications |
Frequency Band |
5800-5825MHz / 802.11a/n |
|
Modulation |
OFDM/MIMO |
|
|
Data Rates Supported |
6、9、12、18、24、36、48、54、96、108、150、240、300Mbps |
|
|
Radio Mode |
AP / Bridge/ AP Repeater/ Wireless client |
|
|
Level display |
Support the reception level status/Antenna proofreading |
|
|
Band scan |
Site scanning and channel detection |
|
|
RF Features |
Transmit Power |
26dBm±1dBm |
|
Receive Sensitivity |
-75dBm@300Mbps/-74dBm@108Mbps/-86dBm@12Mbps/-92dBm@6Mbps |
|
|
Channel Bandwidths |
5/10/20/40MHZ Selectable |
|
|
Security Features |
Data Security |
WEP/WPA/WPA2/802.1x |
|
Layer 2 isolation |
support hide the network SSID |
|
|
Access Control Lists |
MAC Filtering |
|
|
Network management |
Network |
DHCP Server/DHCP Clinet/Net |
|
|
|
|
|
Status display |
ARP、Bridge、route 、throughput table |
|
|
Virtual SSID |
Support Multiple SSID and encryption |
|
|
802.1Q |
support 802.1Q VLAN |
|
|
Remote Configuration Support |
WEB、SNMP、TELNET、SSH |
|
|
Upgrad/ backup |
WEB、FTP |
|
|
LED indicator |
high-brightness LED equipment operating status indicator and signal strength indicator |
|
|
Roaming switch |
support intelligent roaming handover algorithm |
|
|
Electric Features |
Power supply |
48V POE remote power supply module |
|
Power Consumption |
8.5W |
|
|
Interface Type |
Antenna Interface |
2 X N-type connector |
|
Network Interface |
1 x 10/100 BaseT Ethernet |
|
|
Device Reset |
hardware reset button |
|
|
Physical Features |
SIZE |
265×185×80 mm |
|
WEIGHT |
3KG |
|
|
Material |
Die-cast aluminum |
|
|
Environmental Features |
Operating Temperature |
-40C～+80C |
|
Operating Relative Humidity |
95% non-condensing |
|
|
Enclosure |
IP67 |
|

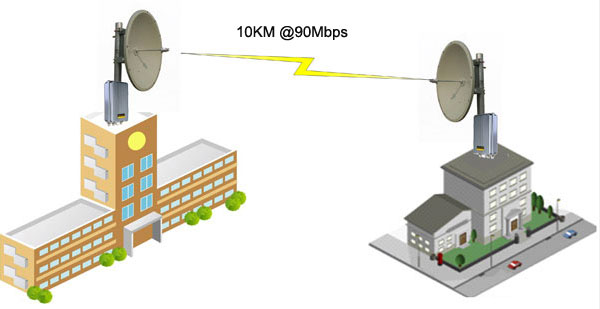

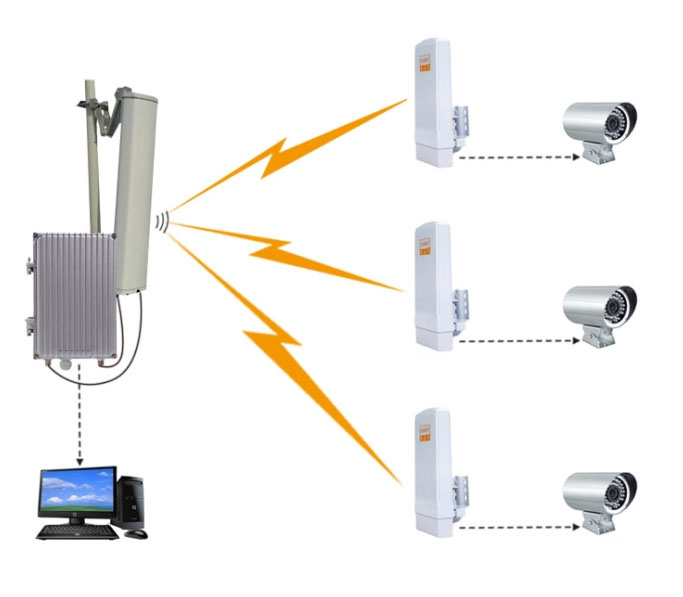

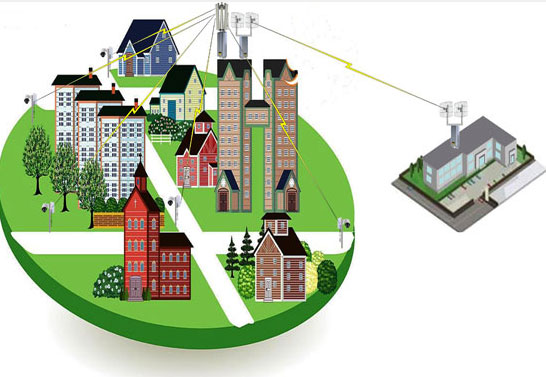

Solutions
|
|
|
|
 |
 |
.
Model
HY58N1-E 5.8G Wireless Bridge/AP
