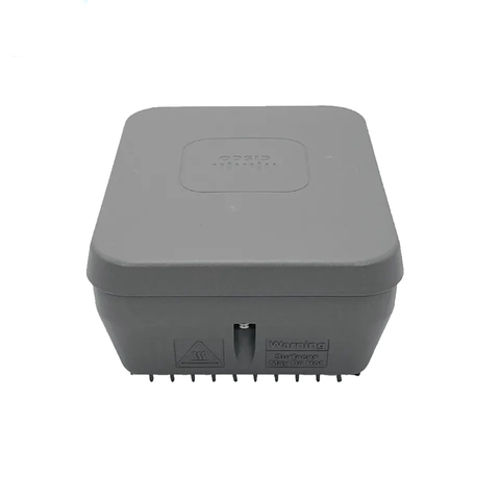

Original Cis co 1560 Series AIR-AP1562I-E-K9 Aironet Outdoor wireless Access Point
Short Description:
| Product Code | AIR-AP1562I-E-K9 |
| Integrated antenna | ● 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°● 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° |
| Description | 1542IAccess Point: Indoor environments, with internal antennas |
| Interfaces | ● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)● Management console port (RJ-45)● USB 2.0 (enabled via future software) |
| Software | Cis co Unified Wireless Network Software Release with AireOS wireless controllers:● 8.1.121.0 or later for the Cis co Aironet 1830 Series Access Points |
| Dimensions(W x L x H) | ● Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
| Deployment modes | Centralized, standalone, sniffer,** Cis co FlexConnect®, monitor,** OfficeExtend,** mesh** |
| Weight | ● 2.05 lb (930 grams) |
| Supported wireless LAN controllers | ● Cis co 2500 Series Wireless Controllers, Cis co 3500 Series Wireless Controllers, Cis co Wireless Controller Module for ISR G2,Cis co Wireless Services Module 2 (WiSM2) for Cis co Catalyst ® 6500 Series Switches, Cis co 5500 Series Wireless Controllers, Cis coFlex ® 7500 Series Wireless Controllers, Cis co 8500 Series Wireless Controllers, Cis co Catalyst 9800 Series Wireless Controllers,Cis co 5760 Wireless LAN Controller, * * Cis co Catalyst 3650 and 3850 Series Switches with integrated controller **● Ci sco Mobility Express |
| Data rates supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps802.11n data rates on 2.4 GHz (only 20 MHz and MCS 0 to MCS 23) and 5 GHz: |
| 802.11n version 2.0 (and related) capabilities | ● 3x3 MIMO with two spatial streams● Maximal Ratio Combining (MRC)● 20- and 40-MHz channels● PHY data rates up to 300 Mbps (40 MHz with 5 GHz)● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)● 802.11 Dynamic Frequency Selection (DFS)● Cyclic Shift Diversity (CSD) support |
| 802.11ac Wave 1 and 2 capabilities | ● 3x3 MIMO with two spatial streams, single-user or multiuser MIMO● MRC● 802.11ac beamforming (transmit beamforming)● 20-, 40-, and 80-MHz channels● PHY data rates up to 867 Mbps (80 MHz in 5 GHz)● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)● 802.11 DFS● CSD support |
| Power draw | ● AP1830: 44 to 57 VDC● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
| Powering options | ● 802.3af/802.3at● Enhanced PoE● Cis co local power supply, AIR-PWR-C=● Cis co power injector, AIR-PWRINJ5= ( Note: This injector supports 802.3af only), AIR-PWRINJ6=Note: If 802.3af PoE is the source of power, the USB port is disabled. |
| WAN Ports | 1 |
| Place of Origin | China |
