| Part Number |
C9120AXI-E |
| Description |

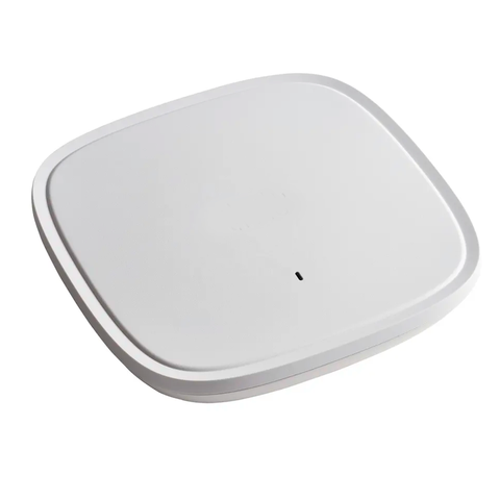

Cisc o C atalyst 9120AX Access Point, internal antennas; Wi-Fi 6; 4x4:4 MIMO, A Domain |
| Software |
-● Cisc o Unified Wireless Network Software Release 8.9.x or later● Cisc o IOS ® XE Software Release 16.11 with AP Device Pack, or later |
| Regulatory Domain |
E (K regulatory domain):- 2.412 to 2.472 GHz; 13 channels- 5.180 to 5.320 GHz; 8 channels- 5.500 to 5.620 GHz; 7 channels- 5.745 to 5.805 GHz; 4 channels |
| Integrated antenna |
- 2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°- 5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360° |
| Interfaces |
- 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)- Management console port (RJ-45)- USB 2.0 (enabled via future software) |
| Dimensions (W x L x H) |
8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm) |
| Weight |
3.12 lb (1.41 kg) |
