Huawei 3G router AR1220EV

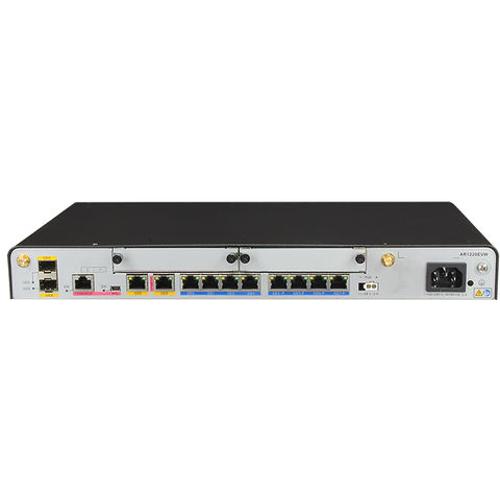

Short Description:
| 1 | |
| Two USB interfaces (host) NOTE: After a 3G USB modem is inserted, you are advised to install a plastic USB protection cap (optional) on it. There are two tapped holes above a USB interface. Insert screws in the tapped holes to fix the plastic protection cap. The following figure shows a plastic USB protection cap. | |
| 2 | RST button NOTICE: This button is used to reset the router. Resetting the router will interrupt services. Exercise caution when deciding to press this button. |
| 3 | |
| Two SIC slots | |
| 4 | Product model silkscreen |
| 5 | |
| Ground point NOTE: Reliably ground the router by connecting a ground cableto the ground point to protect the router against lightning and interference. | |
| 6 | Console interface |
| 7 | |
| Mini USB interface NOTE: The Mini USB interface and console interface cannot be used at the same time. | |
| 8 | Two GE combo interfaces |
| 9 | |
| Eight GE electrical interfaces NOTE: Electrical interfaces GE4 to GE7 support the PoE function. | |
| 10 | AC power jack NOTE: Use an AC power cable to connect the router to an external power source. |
| 11 | |
| Jack for power cable locking strap NOTE: Insert a power cable locking strap in this jack to secure the power cable. | |
| 12 | PoE power jack NOTE: The PoE power jack connects to a 3.6 100 W AC PoE Power Module to provide power for PDs (such as IP phones, WLAN APs, and cameras) connected to GE interfaces of the router. |
