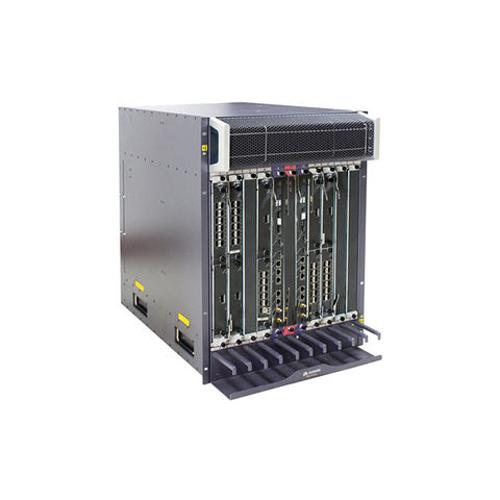

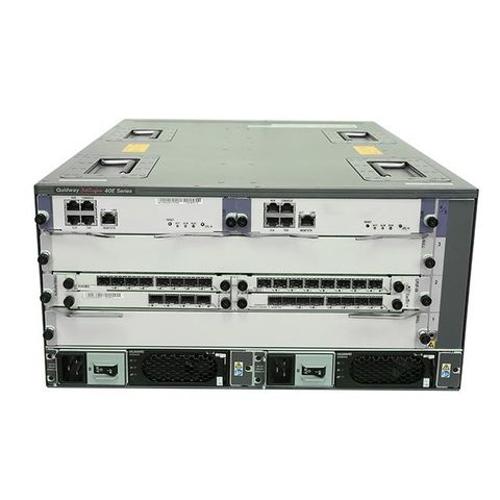

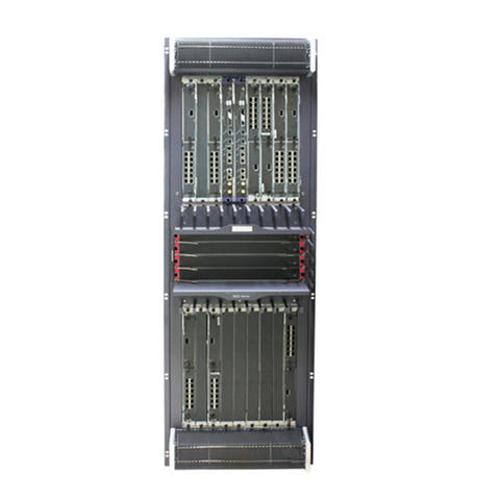

NE40E-X3 IPTV Slot 3 Wan Firewall Router
Short Description:
| Switching Capacity | |
| 7.08 Tbps | 1.08T bps |
| Forwarding Performance | |
| 1600 Mpps | 300 Mpps |
| Number of Slots | |
| 11 slots, including 2 SRUs(1:1 backup), 1 SFUs(2+1 backup), and 8 LPUs | 5 slots, including 2 MPUs(1:1 backup) and 3 LPUs |
| Dimension (W×D×H) | |
| 442mm × 650mm × 620mm (14 U) | 442mm × 650 mm × 175mm (DC 4 U)442mm × 650 mm × 220mm (AC 5 U) |
| Maximum power consumption | |
| 2800 W (40 G)3300 W (100 G) | 1100 W |
| Weight in full configuration | |
| 130 kg | 41 kg (DC)51 kg (AC) |
| Interface type | |
| 100GE/40GEGE/FEOC-192c/STM-64c POSOC-12c/STM-4c POSChannelized OC-3/STM-1OC-12c/STM-4c ATMCE1/CT1 | 10GE-LAN/WANOC-768c/STM-256c POSOC-48c/STM-16c POSOC-3c/STM-1c POSOC-3c/STM-1c ATME3/CT3E1/T1 |
| IPv4 | Supports the static routing protocol and IPv4 dynamic routing protocols such as RIP, OSPF, IS-IS, and BGP-4. |
| IPv6 | Supports various technologies for transition from IPv4 to IPv6: manual tunnel configurations, automatic tunnel configurations, IPv6-to-IPv4 (6-to-4) tunneling, Generic Routing Encapsulation (GRE) tunneling, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunneling.Supports IPv4 over IPv6 tunneling and IPv6 Provider Edge Router (6PE).Supports the IPv6 static routing protocol.Supports IPv6 dynamic routing protocols such as RIP Next Generation (RIPng), OSPFv3, IS-ISv6, and BGP4+.Supports IPv6 neighbor discovery and path Maximum Transmission Unit (PMTU) discovery.Supports Transmission Control Protocol Version 6 (TCP6), ping IPv6, traceroute IPv6, socket IPv6, static IPv6 Domain Name System (DNS), specifying the IPv6 DNS server, Trivial File Transfer Protocol (TFTP) IPv6 client, and IPv6 policy-based routing.Supports Internet Control Message Protocol Version 6 (ICMPv6) Management Information Base (MIB), User Datagram Protocol Version 6 (UDP6) MIB, TCP6 MIB, and IPv6 MIB.Supports L2NAT,NAT444,DS-LITE |
| MPLS | Supports LDP over TE, VPLS, H-VPLS, policy-based routing in VPN.Supports MPLS L2VPNs in either Martini or Kompella mode.Supports VLL/VPLS access L3VPNs.Supports QinQ, MPLS/BGP L3VPN, and inter-AS VPN Option A/B/C.Supports Asynchronous Transfer Mode (ATM) E1, Inverse Multiplexing over ATM (IMA), and Time-Division Multiplexing (TDM) PWE3.Supports MPLS-TP. |
| Layer 2 feature | Supports IEEE802.1q, IEEE802.1p, IEEE 802.3ad, and IEEE 802.1ab.Supports the Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), RRPP, DHCP+, VLAN switching, and user binding. |
| Reliability | Supports BGP GR, IS-IS GR, and OSPF GR.Supports LDP GR, Resource-Reservation Protocol (RSVP) GR, and Non-Stop Forwarding (NSF).Supports VLL/VPLS/L3VPN GR/NSF.Supports multicast NSF.Supports BGP/IS-IS/OSPF/LDP/RSVP-TE/PIM/ISSU Non-Stop Routing (NSR).Supports In-Service Software Upgrade (ISSU).Supports fast convergence of Interior Gateway Protocols (IGPs), BGP, and multicast routing.Supports IP/LDP/VPN/TE/VLL FRR.Supports IP Auto FRR.Supports BFD for the static routing protocol and protocols such as IS-IS, RSVP, LDP, TE, Label Switched Path (LSP), PW, OSPF, BGP, VRRP, PIM, and RRPP.Supports RRPP.Supports MPLS OAM and Ethernet OAM, Y.1731.Supports backup of service routers, PW redundancy, and PWE3 end-to-end protection.Supports E-Trunk, E-APS, E-STP. |
| QoS | Supports Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS.Supports the last mile QoS.Supports multicast replication of IPoE access users. |
| Multicast | Supports IGMPv1, IGMPv2, IGMPv3, IGMP snooping, multicast VPN, and IPv6 multicast.Supports static multicast routes.Supports multicast routing protocols: PIM-DM, PIM-SM, PIM-SSM, Multicast source Discovery Protocol (MSDP), and Multi protocol BGP (MBGP).Supports the deployment of both multicast and TE.Supports multicast CAC. |
| User management | Supports management over access users such as IP over X (IPoX) access users.Supports user authentication protocols, such as Password Authentication Protocol (PAP), Challenge Handshake Authentication Protocol (CHAP), Microsoft CHAP (MSCHAP), Remote Authentication Dial In User Service (RADIUS), and HW Terminal Access Controller Access Control System (HWTACACS).Supports user accounting protocols, such as RADIUS, HWTACACS, and Common Open Policy Service (COPS).Supports user authorization protocols, such as RADIUS, HWTACACS, and COPS.Supports protocols such as COPS and Change of Authorization (CoA). |
| Security | Supports ACL filtering, URPF, GTSM, and DHCP Snooping.Supports anti-ARP attack and anti-DOS attack.Supports MAC address limitation and bonding between MAC and IP.Supports SSH and SSH v2.Supports NetStream.Supports IPSec. |
| Clock transmission | Supports Adaptive Clock Recovery (ACR), Differential Clock Recovery (DCR), Ethernet clock synchronization, and IEEE 1588v2. |
| IP RAN | Supports TDM PWE3 and ATM PWE3Supports ATM IMA Supports MPLS-TPSupports CSG Plug-and-Play |
| Environmental requirements | Long-term ambient temperature: 0oC to 45oCShort-term ambient temperature: –5oC to +55oCTemperature change rate: 30oC/hourLong-term relative humidity: 5% to 85%, non-condensingShort-term relative humidity: 0% to 95%, non-condensingWorking altitude: lower than 3000 meters |
