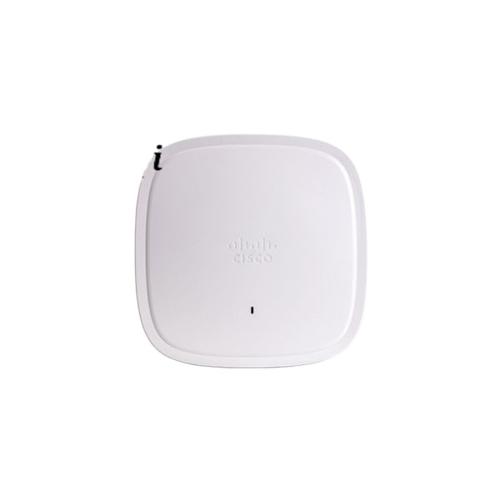

Cat alyst 9130 WiFi 6 Access Point 9130AX Series Cis co C9130AXI-H
Short Description:
| C9130AXI-H Specification | |
| Software | Catalyst 9130AXI• Cisco Unified Wireless Network Software Release 8.10.x or later• Cisco IOS ® XE Software Release 16.12.1 with AP Device Pack, or later |
| Supported wireless LAN controllers | • Cisco Catalyst 9800 Series Wireless Controllers• Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | • 4x4 MIMO with four spatial streams• Maximal Ratio Combining (MRC)• 802.11n and 802.11a/g• 20- and 40-MHz channels• PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)• Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU)(transmit and receive)• 802.11 Dynamic Frequency Selection (DFS)• Cyclic Shift Diversity (CSD) support |
| 802.11ac | • 8x8 downlink MU-MIMO with eight spatial streams• MRC• 802.11ac beamforming• 20-, 40-, 80-, and 160-MHz channels• PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz)• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)• 802.11 DFS• CSD support• WPA3 support |
| 802.11ax | • 8x8 uplink/downlink MU-MIMO with eight spatial streams• Uplink/downlink OFDMA• TWT• BSS coloring• MRC• 802.11ax beamforming• 20-, 40-, 80-, and 160-MHz channels• PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)• 802.11 DFS• CSD support• WPA3 support |
| Integrated antenna | • 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth• 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth |
| External antenna with Smart antenna connector | • The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz)• Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios• Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector• Smart antenna connector is a compact multi-RF connector with 8-DART interface• Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector• Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna |
| Interfaces | • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz• Management console port (RJ-45)• USB 2.0 at 4.5W (enabled via future software) |
| Indicators | • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | • Access point (without mounting brackets):- C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm) |
| Environmental | Cisco Catalyst 9130AXI• Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)• Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m)• Operating temperature: 32° to 122°F (0° to 50°C)• Operating humidity: 10% to 90% (noncondensing)• Operating altitude test: 40˚C, 9843 ft (3000 m)Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 8x8 to 4x4 on the 5 GHz radio, uplinkEthernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled. |
| System memory | • 2048 MB DRAM• 1024 MB flash |
| Warranty | Limited lifetime hardware warranty |
| Available transmit power settings | 2.4 GHz• 23 dBm (200 mW)• 20 dBm (100 mW)• 17 dBm (50 mW)• 14 dBm (25 mW)• 11 dBm (12.5 mW)• 8 dBm (6.25 mW)• 5 dBm (3.13 mW)• 2 dBm (1.56 mW)• -1 dBm (0.79 mW)• -4 dBm(0.39 mW)5 GHz• 26 dBm (400 mW)• 23 dBm (200 mW)• 20 dBm (100 mW)• 17 dBm (50 mW)• 14 dBm (25 mW)• 11 dBm (12.5 mW)• 8 dBm (6.25 mW)• 5 dBm (3.13 mW)• 2 dBm (1.56 mW)• -1 dBm (0.79 mW) |
| Maximum number of nonoverlapping channels | 2.4 GHz• 802.11b/g:- 20 MHz: 3• 802.11n:- 20 MHz: 3• 802.11ax:- 20 MHz: 35 GHz• 802.11a:- 20 MHz: 26 FCC, 16 EU• 802.11n:- 20 MHz: 26 FCC, 16 EU- 40 MHz: 12 FCC, 7 EU• 802.11ac/ax:- 20 MHz: 26 FCC, 16 EU- 40 MHz: 12 FCC, 7 EU- 80 MHz: 5 FCC, 3 EU- 160 MHz 2 FCC, 1 EUNote: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. |
| Compliance standards | • Safety:- IEC 60950-1- EN 60950-1- UL 60950-1- CAN/CSA-C22.2 No. 60950-1- AS/NZS60950.1- UL 2043- Class III equipment• Emissions:- CISPR 32 (rev. 2015)- EN 55032 (rev. 2012/AC:2013)- EN 55032 (rev. 2015)- EN61000-3-2 (rev. 2014)- EN61000-3-3 (rev. 2013)- KN61000-3-2- KN61000-3-3- AS/NZS CISPR 32 Class B (rev. 2015)- 47 CFR FCC Part 15B- ICES-003 (rev. 2016 Issue 6, Class B)- VCCI-CISPR 32- CNS (rev. 13438)- KN-32- QCVN 118:2018/BTTTT• Immunity:- CISPR 24 (rev. 2010)- EN 55024 + AMD 1(rev. 2010)- EN 55035: 2017- KN35• Emissions and immunity:- EN 301 489-1 (v2.1.1 2017-02)- EN 301 489-17 (v3.1.1 2017-02)- QCVN (18:2014)- QCVN 112:2017/BTTTT- KN 489-1- KN 489-17- EN 60601-1-2:2015- EN 61000-6-1: 2007• Radio:- EN 300 328 (v2.1.1)- EN 301 893 (v2.1.1)- AS/NZS 4268 (rev. 2017)- 47 CFR FCC Part 15C, 15.247, 15.407- RSP-100- RSS-GEN- RSS-247- China regulations SRRC- LP0002 (rev 2018.1.10)- Japan Std. 33a, Std. 66, and Std. 71• RF safety:- EN 50385 (rev. Aug 2002)- ARPANSA- AS/NZS 2772 (rev. 2016)- EN 62209-1 (rev. 2016)- EN 62209-2 (rev. 2010)- 47 CFR Part 1.1310 and 2.1091- RSS-102• IEEE standards:- IEEE 802.3- IEEE 802.3ab- IEEE 802.3af/at- IEEE 802.11a/b/g/n/ac/ax- IEEE 802.11h, 802.11d• Security:- 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3- 802.1X- Advanced Encryption Standard (AES)• Extensible Authentication Protocol (EAP) types:- EAP-Transport Layer Security (TLS)- EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2- Protected EAP (PEAP) v0 or EAP-MSCHAP v2- EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)- PEAP v1 or EAP-Generic Token Card (GTC)- EAP-Subscriber Identity Module (SIM) |
