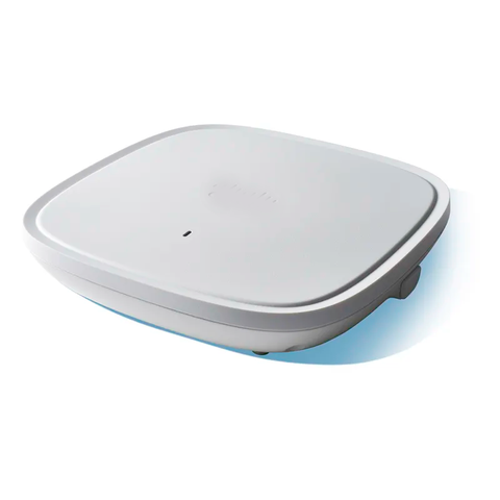

Best price Cis co 9105AX series AP WiFi 6 Access Points c9105axi-h,c9105axi-e
Short Description:
| Software | Catalyst 9105 AXI Unified Wireless Network Software Release 8.10.MR3 or later IOS ® XE Software Release 17.3.1, or later |
| Supported wireless LAN controllers | Catalyst 9800 Series Wireless Controllers 3504, 5520, and 8540 Wireless Controllers and Virtual Wireless Controller |
| 802.11n version 2.0 (and related) capabilities | 2x2 MIMO with two spatial streams Maximal Ratio Combining (MRC) 802.11n and 802.11a/g 20- and 40-MHz channels PHY data rates up to 444.4 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU)(transmit and receive) 802.11 Dynamic Frequency Selection (DFS) Cyclic Shift Diversity (CSD) support |
| 802.11ac | 2x2 downlink MU-MIMO with two spatial streams MRC 802.11ac beamforming 20-, 40-, 80- MHz channels PHY data rates up to 866.7 Mbps (80 MHz with 5GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support WPA3 support |
| 802.11ax | 2x2 uplink/downlink MU-MIMO with two spatial streams Uplink/downlink OFDMA TWT BSS coloring MRC 802.11ax beamforming 20-, 40-, 80- channels PHY data rates up to 1.488 Gbps (80 MHz with 5 GHz and 20 MHz with 2.4 GHz) Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) 802.11 DFS CSD support WPA3 support |
| Integrated antenna | Catalyst 9105AXI 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | Catalyst 9105AXI 1x 10/100/1000 Base-T (Ethernet) Uplink Interface Management console port (RJ-45) |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions(W x L x H) | Access point (without mounting brackets): C9105AXI: 5.9 x 5.9 x 1.18 in. (150 x 150 x 30 mm) |
