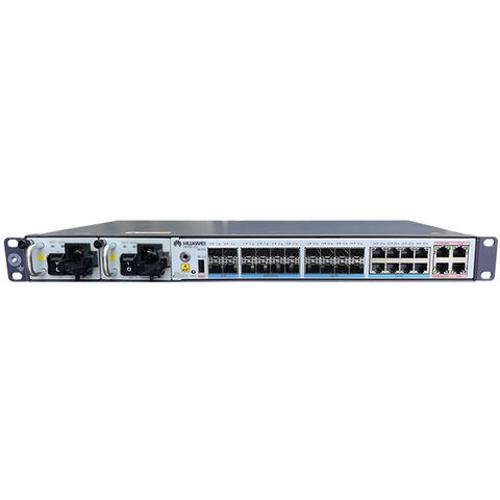

Huawei VPN powerful WIFI NE05E Router NE05E-SQ
Short Description:
| Attribute | |
| NE05E-SE/SF | |
| NE05E-SG/SH/SI | NE05E-SJ/SK/SL/SM |
| Forwarding Capacity (IPv4/IPv6) | |
| 66 Mpps | |
| 18 Mpps | SJ/SK/SL: 9 Mpps SM: 6 Mpps |
| Forwarding Capability (IMIX) | |
| 88 Gbit/s | |
| 24 Gbit/s | SJ/SK/SL: 12 Gbit/s SM: 8 Gbit/s |
| Interfaces | |
| SE: 2 x 10 GE + 16 GE(O) + 8 GE(E) SF: 2 x 10 GE + 8 GE(O) + 8 GE(E) + 2 x 8 E1 | |
| SG: 4 GE(O) + 4 GE(E) + 4 GE Combo SH: 4 GE(O) + 4 GE(E) + 4 GE Combo + 2 x 8 E1 SI: 4 GE(O) + 4 GE/FE(O) + 4 GE(E) | SJ/SK/SL: 2 x FE/GE(O) + 2 x FE/GE(E) + 2 x FE/GE Combo Support GPON ONU SM: 1 x GE(O) + 2 x GE/FE(E) + 1 x FE/GE Combo |
| Clock | 1588v2, ACR, E1 line clock, and sync clock |
| Power COM | |
| SE:49.8W SF:52.1W | |
| 35W | 9.9W |
| Voltage | |
| -38.4V to -72.0V DC 100V to 240V AC | |
| -38.4V to -72.0V DC 100V to 240V AC | SJ/SL/SM: 90V to 260V AC SK: -38.4V to -72.0V DC |
| Slots | |
| 0 | |
| 0 | |
| 0 | |
| Dimensions (H x W x D) | |
| 44.45 mm x 442 mm x 220 mm (1U) | 44 mm x 250 mm x 180 mm |
| Weight | |
| 3 kg | |
| 3 kg | SJ/SK: 1.81 kg SK/SL: 2.7 kg |
| Operating temperature | |
| -40°C to +65°C | |
| -40°C to +65°C | SJ/SK/SL: -40°C to +65°C SM: -40°C to +55°C |
| Humidity | 5% RH to 95% RH, non-condensing |
