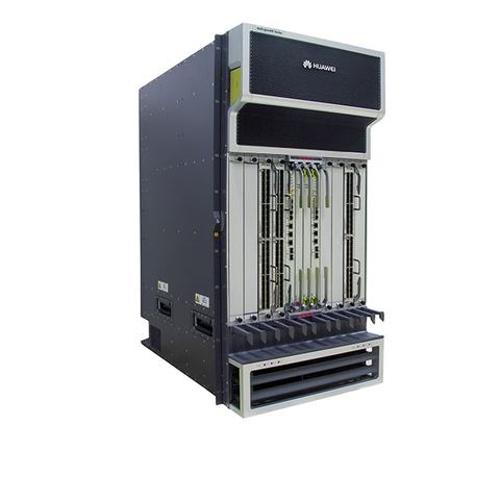

Huawei NE40E-X8A NE40E series Universal Service 2 Fan Tray Router
Short Description:
| Dimensions (H x W x D) | (21 U) 930 mm x 442 mm x 650 mm (36.61 in. x 17.40 in. x 25.59 in.) (Chassis main body) (21 U) 930 mm x 442 mm x 750 mm (36.61 in. x 17.40 in. x 29.53 in.) (Dimensions of the chassis body together with cable trays and front and back attachments) |
| Weight (empty) | DC: 68.1 kg (150.16 lb) (without filler panels) HVDC&AC: 63.7 kg (140.46 lb) (without filler panels) |
| Weight (full configuration) | [400G bundle] DC:186.1 kg (410.35 lb) [400G bundle] HVDC&AC:184.3 kg (406.38 lb) [1T bundle] DC:209 kg (460.85 lb) [1T bundle]HVDC&AC:206.5 kg (455.33 lb) |
| Cabinet installation standard | Can be installed in a standard 19" 800 mm-deep cabinet. A Huawei 2.2 m-high N68E cabinet is used by default. |
| Typical power consumption | 4110 W (fully configured with LPUF-240s) 4770 W (fully configured with LPUF-480s) 6520 W (fully configured with LPUI-1Ts) |
| Typical heat dissipation | 13334.6 BTU/hour (fully configured with LPUF-240s) 15475.9 BTU/hour (fully configured with LPUF-480s) 21153.6 BTU/hour (fully configured with LPUI-1Ts) |
| DC input voltage | input voltage range: –40 V to –72 V input rated voltage: –48 V/ –60 V |
| AC input voltage | input voltage range: 180 V to 264 V input rated voltage: 200 V to 240 V |
| MTBF | 22.32 years |
| MTTR | 0.5 hours |
| Availability | 0.999997443 |
| Slot quantity | 12 |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | 3+1 |
