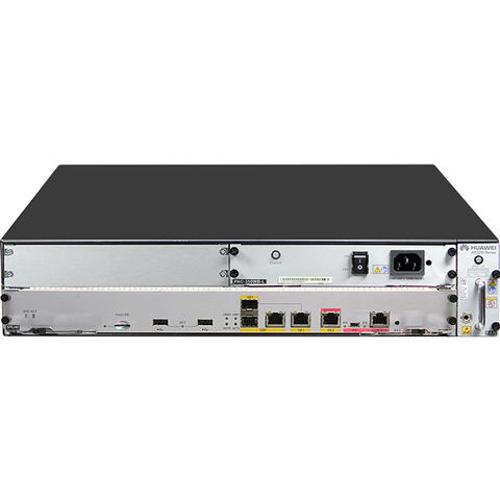

AR2200 AR2240 Enterprise Router for wired and wireless 3G
Short Description:
| pecifications | AR2240 |
| WAN Speed with Services*** | 1 Gbit/s (with SRU40) 2 Gbit/s (with SRU80) 1 Gbit/s (with SRU100E) 4.5 Gbit/s (with SRU200) |
| Fixed WAN Ports | SRU40: 3 x GE (2 x Combo) SRU80: 3 x GE (2 x Combo) SRU100E: 4 x GE Combo+ 2 x GE SFP SRU200: 4 x GE Combo+ 2 x 10 GE SFP+ |
| Fixed LAN Ports | - |
| SIC Slots | 4 |
| WSIC Slots (default/max.) | 2/4 |
| XSIC Slots (default/max.) | 2/4 |
| Wireless Controller | Wireless Controller is integrated in software |
| Maintenance | All interface cards support hot-swappingU-disk deployment supported |
| Memory | 2 GB/4 GB |
| Flash(default/max.) | 2 GB/8 GB |
| Power Supply | AC: 100V to 240V, 50 Hz/60 Hz |
| Redundant Power Supply | Internal: AC, DC |
| Rack Height | 2 RU |
| Dimensions (H x W x D) | 88.1 mm x 442 mm x 470 mm |
