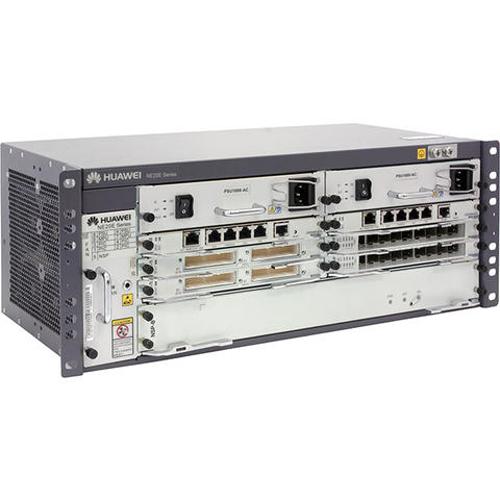

Huawei 10G/40G SFP Router NE20E-S2E
Short Description:
| Item | |
| NE20E-S2E | |
| NE20E-S2F | |
| NE20E-S4 | NE20E-S8 |
| Switching Capacity | |
| 160 Gbit/s | |
| 320 Gbit/s | |
| 480 Gbit/s | 480 Gbit/s |
| Forwarding Performance | |
| 70 Mpps | |
| 150 Mpps | |
| 180 Mpps | 360 Mpps |
| Fixed Ports | |
| 2 x 10 GE (SFP+) and 24 x GE (SFP) | |
| 4 x 10 GE (SFP+) and 40 x GE (SFP) | |
| -- | -- |
| Number of Slots | |
| 2 PICs | |
| 2 PICs | |
| 2 MPUs 1 NSP 4 PICs 2 MPUs 2 NSPs 8 PICs 2 MPUs 2 NSPs 16 PICs | |
| Dimensions (H x W x D) | |
| 3.5 in. x 17.4 in. x 8.6 in. = 2U (89 mm x 442 mm x 220 mm = 2U) | |
| 3.5 in. x 17. 4 in. x 8.6 in. = 2U (89 mm x 442 mm x 220 mm = 2U) | |
| 5.1 in. x 17.4 in. x 8.6 in. DC = 3U (132 mm x 442 mm x 220 mm DC = 3U) 7.0 in. x 17.4 in. x 8.6 in. = 4U (178 mm x 442 mm x 220 mm AC = 4U) | 8.7 in. x 17.4 in. x 8.6 in. DC = 5U (222 mm x 442 mm x 220 mm DC = 5U) 10.3 in. x 17.4 in. x 8.6 in. AC = 6U (264 mm x 442 mm x 220 mm AC = 6U) |
| Power consumption (in full configuration) | |
| 195W (DC)219W (AC) | |
| 309W (DC)335W (AC) | |
| 398W (DC)456W (AC) | 645W (DC)703W (AC) |
| Weight in Full Configuration | |
| 20.5 lb (9.3 kg) (DC)22.7 lb (10.3 kg) (AC) | |
| 20.7 lb (9.4 kg) (DC)22.9 lb (10.4 kg) (AC) | |
| 30.2 lb (13.7 kg) (DC)39.9 lb (18.1 kg) (AC) | 49.1 lb (22.3 kg) (DC)59.5 lb (27.0 kg) (AC) |
| Interface Types | 40 GE 10 GE GE/FE OC-3c/STM-1c POS OC-12c/STM-4c POS Channelized OC-3/STM-1 POS E1/CE1 |
| Clock Synchronization | Synchronous Ethernet and IEEE 1588v2 |
| Layer 2 Features | IEEE 802.1q IEEE 802.1p IEEE 802.3ad IEEE 802.1ab STP/RSTP/MSTP |
| IPv4/IPv6 Routing Protocols | IPv4 static routes and dynamic routing protocols, such as RIP, OSPF, IS-IS, and BGP IPv4/IPv6 dual stack IPv4-to-IPv6 transition technologies, such as manual tunnel, 6-to-4 tunnel, and 6PE IPv6 static routes and dynamic routing protocols, such as BGP4+, RIPng, OSPFv3, and IS-ISv6 IPv6 neighbor discovery, PMTU discovery, TCP6, ping IPv6, tracert IPv6, socket IPv6, and IPv6 policy-based routing |
| L2/L3 VPN | LDP over TE, VPLS, H-VPLS, and VPN policy-based routing Martini MPLS L2VPN VLL/VPLS accessing L3VPN MPLS/BGP L3VPN and inter-AS VPN |
| Multicast | IGMPv1/v2/v3 IGMP snooping IPv6 multicast Static multicast routing PIM-SM PIM-SSM MBGP NG MVPN |
| QoS | WRED Five-level HQoS VLL/PWE3 QoS |
| Reliability | NSR for OSPF/RIP/LDP/RSVP-TE/PIM/MSDP/IGMP/ARP/L3VPN/IS-IS/BGP/VLL/VRRP GR for BGP/OSPF/IS-IS/LDP/VLL/VPLS/RSVP/L3VPN/PIM BFD for static route/fast reroute/VRRP/IS-IS/OSPF/BGP/PIM/LSP/IPv6 Fast convergence of BGP/IGP/multicast routes IP/LDP FRR, TE FRR, VPN FRR, and VLL FRR Ethernet OAM, Y.1731, and PWE3 E2E protection ISSU and in-service patching for smooth software upgrades |
| Security | ACL-based packet filtering AAA SNMPv3 encryption and authentication URPF, GTSM, DHCP snooping ARP attack defense SSHv2 |
| Value-added Services | NAT, IPSec, GRE, and NetStream |
| OAM | Y.1731, IP FPM, MPLS OAM, 802.1ag, and 802.3ah |
| Operating Temperature | |
| 23°F to 147°F(-5°C to 65°C) | |
| 23°F to 147°F(-5°C to 65°C) | |
| -40°F to 149°F(-40°C to 65°C) | -40°F to 149°F(-40°C to 65°C) |
| Operating Relative Humidity | 5% to 85%, non-condensing |
| Operating Altitude | ≤ 9,842.5 ft. (3,000m) |
