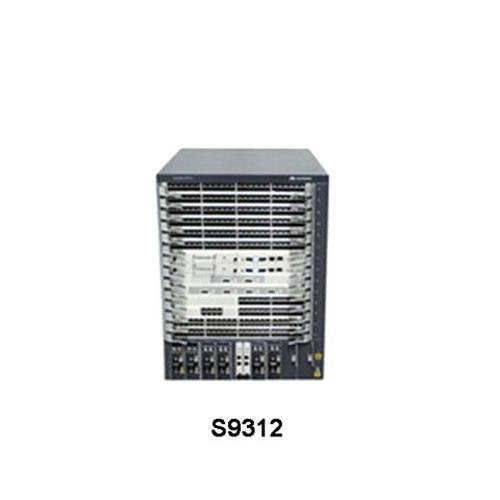

Huawei S9312 Ethernet Switch high-end network Terabit Routing Switch S9300 Series
Short Description:
| Dimensions (W x D x H, excluding the rack-mounting ears) | |
| S9312: With cable management frames: 442 mm x 585 mm x 663.95 mm (15 U high) Without cable management frames: 442 mm x 489 mm x 663.95 mm (15 U high) S9312E: With cable management frames: 442 mm x 585 mm x 663.95 mm (15 U high) Without cable management frames: 442 mm x 489 mm x 663.95 mm (15 U high) | |
| S9306: with cable management frames: 442 mm x 585 mm x 441.7 mm (10 U high) Without cable management frames: 442 mm x 489 mm x 441.7 mm (10 U high) S9306E: With cable management frames: 442 mm x 585 mm x 441.7 mm (10 U high) Without cable management frames: 442 mm x 489 mm x 441.7 mm (10 U high) | S9303: With cable management frames: 442 mm x 585 mm x 175 mm (4 U high) Without cable management frames: 442 mm x 489 mm x 175 mm (4 U high) S9303E: With cable management frames: 442 mm x 585 mm x 175 mm (4 U high) Without cable management frames: 442 mm x 489 mm x 175 mm (4 U high) |
| Cabinet | |
| N66E or N68E | |
| N66E or N68E | |
| N66E or N68E | |
| Maximum power (full configuration) NOTE: The heat dissipation value of a device equals the current power consumption of the device. | |
| S9312: 3000 W S9312E: 4400 W | |
| S9306: 1600 W S9306E: 2200 W | S9303: 800 W S9303E: 1100 W |
| Weight (empty/fully loaded) | |
| S9312: 25 kg/70 kg S9312E: 37 kg/70 kg | |
| S9306: 15 kg/42 kg S9306E: 29 kg/45 kg | S9303: 10 kg/22 kg S9303E: 11 kg/25 kg |
| Noise at normal temperature | |
| ≤ 72 dB | |
| ≤ 72 dB | |
| ≤ 72 dB | |
| Power specifications | DC input voltage Rated voltage: -48 V DC/-60 V DC Voltage range: -38.4 V DC to -72 V DC AC input voltage Rated voltage: 110 V AC/220 V AC, 50/60 Hz Voltage range: 90 V AC to 290 V AC; 47 Hz to 63 Hz (The output power reduces to half of the maximum output when the input voltage is in the range of 90 V AC to 175 V AC.) |
| PoE NOTE: The S9300E Series Switches do not support PoE. | |
| Power input mode | |
| Built-in. Only the AC power supply is supported. | |
| Built-in. Only the AC power supply is supported. | |
| Built-in. Only the AC power supply is supported. | |
| Redundancy mode of power supplies | |
| The S9312 supports power supplies in 3+1, 2+2, or 4+0 mode. | |
| The S9306 supports power supplies in 3+1, 2+2, or 4+0 mode. | The S9303 does not support backup of AC power modules. |
| Output power consumption | |
| 8800 W | |
| 8800 W | 2200 W |
| Environment parameters | Operating temperature and altitude:Operating relative humidity: 5% RH to 95% RH (noncondensing) -60 m to +1800 m: 0°C to 45°C 1800 m to 4000 m: Temperature decreases by 1°C every time the altitude increases 200 m. 4000 m: 0°C to 35°C Storage temperature: -40°C to +70°C Storage altitude: < 5000 m Storage relative humidity: 5% RH to 95% RH (noncondensing) |
