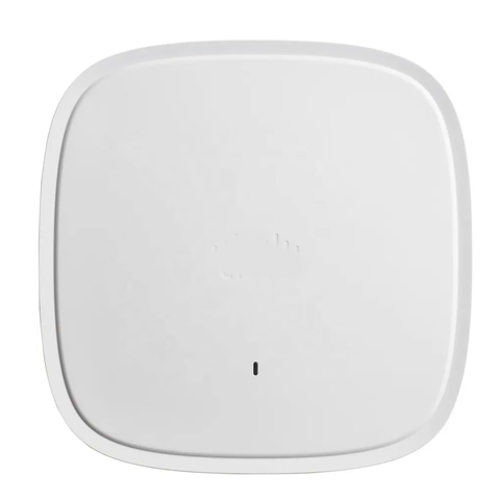

NEW Cis co 9130AX series AP WiFi 6 Access Points c9130axi-a,c9130axi-h
Short Description:
| Product Description | Catalyst 9130AXI - Funkbasisstation - GigE, 5 GigE, 2.5 GigE, 802.11ax |
| Antenna | Internal |
| Directivity | Omni-directional |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | 0 °C |
| Interfaces | 1 x 1/2.5/5GBase-T (UPOE) - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB 2.0 |
| Depth | 22.6 cm |
| Device Type | Radio access point |
| Height | 4.8 cm |
| Ruggedized Design | Indoor |
| Weight | 1.45 kg |
| Width | 22.6 cm |
| Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Compliant Standards | CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, FCC Part 15.247, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15.407, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, EN 62209-1, SRRC, EN 50385, EN62209-2, EN 301 489-1, LP0002, RSS-247, KN32, KN35, AS/NZS CISPR 32 Class B, CISPR 32, EN 55032, EN 61000-6-1:2007, EN60601-1-2:2015, CAN/CSA-C22.2 No. 60950-1, EN 300 328 V2.1.1, EN 55035, VCCI-CISPR 32:2016, CNS, EN 301 489-17, AS/NZS 2772,ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN, EN 301 893 V2.1.1 |
| Included Accessories | Low profile bracket, ceiling grid clip |
| Authentication Method | MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM |
| Compliant Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6) |
| Encryption Algorithm | AES, TLS, PEAP, TTLS, WPA2, EAP-SIM, WPA3, EAP-FAST |
| Features | LLDP support, Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), 802.1x authentication, cyclic shiftdiversity (CSD), MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Dynamic Frequency Selection (DFS),secure boot, 8x8 MU-MIMO technology, Target Wait Time (TWT), Cisco Trust Anchor module, 4x4 MIMO technology |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | OFDMA |
| Status Indicators | Status |
| Power Over Ethernet (PoE) Supported | UPOE |
| Flash Memory | 1 GB |
| RAM | 2 GB |
| Software Included | CAPWAP Software Image |
