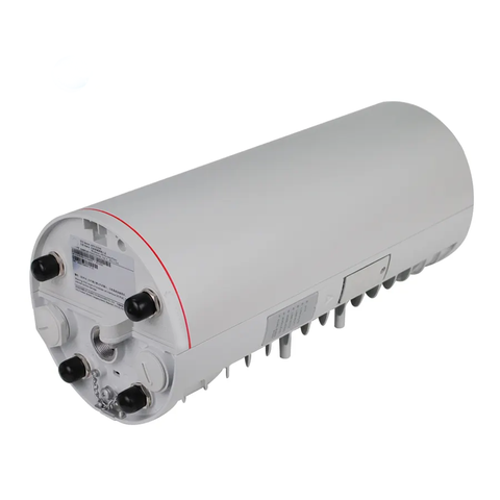

HW AP8182DN 802.11ac Wave 2 outdoor Access Points
Short Description:
| Specifications | AP8082DN & AP8182DN |
| Dimensions (Length x Diameter) | 387 mm x φ165 mm |
| Power Input | PoE power supply: In compliance with IEEE 802.3at/bt; only the 2.5G/5G port supports PoE input |
| Maximum Power Consumption | 802.3bt power supply: 45W (excluding the output power of the PoE OUT port) |
| 802.3at power supply: 25.5W (the PoE OUT function and GE/POE OUT ports are unavailable, 5 GE and SFP are mutually exclusive) | |
| Notes: The actual maximum power consumption depends on local laws and regulations. In 802.3at power supply mode, the radio poweris reduced, and the 2.4 GHz radio frequency works in 2 x 4 MIMO mode | |
| Operating Temperature | –40°C to 65°C |
| Antenna Type | AP8082DN: Built-in directional antennas (horizontal 60ﾰ, vertical 30ﾰ) |
| AP8182DN: External antennas (with eight type N connectors) | |
| Maximum Number of Concurrent Users | ≤ 512 |
| Maximum Transmit Power | AP8082DN: 2.4G: 29 dBm (combined power) 5G: 28 dBm (combined power) |
| AP8182DN: 2.4G: 28 dBm (combined power) 5G: 27 dBm (combined power) | |
| Note: The actual transmit power depends on local laws and regulations | |
| MIMO: Spatial Streams | 4 x 4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2 |
| Maximum Rate | AP8082DN: 2.53 Gbit/s |
| AP8182DN: 3.46 Gbit/s |
