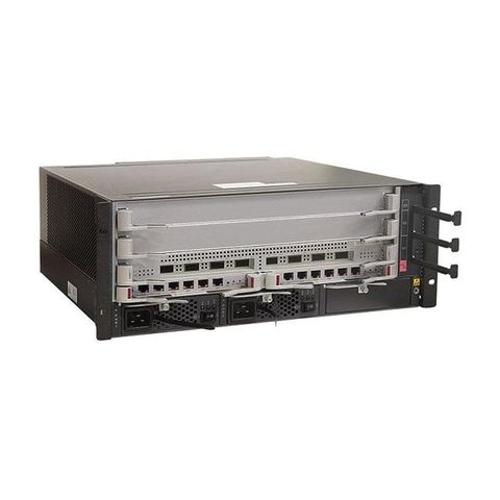

S9700 Series S9703 S9706 S9712 Terabit Routing Data Center Switch L2/L3
Short Description:
| Switching capacity | |
| 2.88 Tbps/5.76 Tbps | |
| 6.72 Tbps/14.72 Tbps | 8.64 Tbps/18.56 Tbps |
| Forwarding performance | |
| 2160 Mpps | |
| 2880 Mpps/5040 Mpps | 3840 Mpps/6480 Mpps |
| Service slots | |
| 3 | |
| 6 | 12 |
| VLAN | Supports adding access, trunk, and hybrid interfaces to VLANs |
| MAC address | Supports automatic learning and aging of MAC addresses |
| STP/ERPS | Supports STP(IEEE 802.1d), RSTP(IEEE 802.1w), and MSTP(IEEE 802.1s) |
| IP routing | Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS |
| Multicast | Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snooping |
| MPLS | Supports basic MPLS functions |
| CSS switch fabric clustering | CSS Switch Fabric Clustering (S9706 and S9712) |
| Service port clustering | Service Port Clustering (S9706 and S9712) |
| Reliability | Supports LACP and E-Trunk |
| QoS | Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority |
| Configuration and maintenance | Supports console, telnet, and SSH terminals |
| Security and management | Supports 802.1x authentication and Portal authentication |
| Value-added services | Supports Firewall |
| Energy saving | Supports IEEE 802.3az: Energy Efficient Ethernet (EEE) |
| Dimensions (W x D x H) | |
| 442 mm × 476 mm × 175 mm | |
| 442 mm × 476 mm × 442 mm | 442 mm × 476 mm × 664 mm |
| Chassis weight (empty) | |
| < 15 kg | |
| < 30 kg | < 45 kg |
| Operating voltage | DC: –38.4 V to –72 V AC: 90 V to 290V |
| Power supply capability of the equipment | |
| 2200W | |
| 4400W | 6600W |
