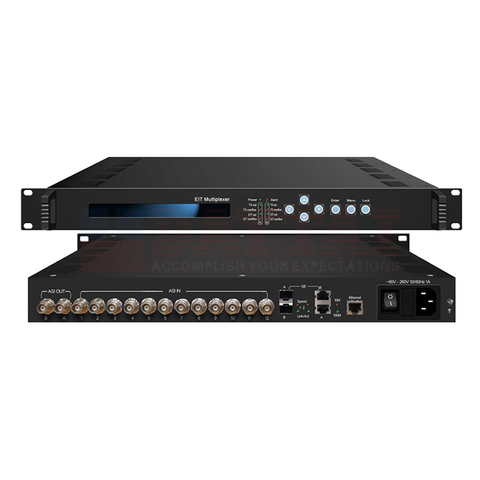

12 ASI Input Video Audio, PCR PIDs, EIT TS Multiplexer with EIT Multiplexing
Short Description:
| Item | |
| Specification | |
| Input | |
| Supporting both packet and byte mode TS input | |
| Supporting 188/204Byte transport stream packet | |
| 12 ASI inputs | |
| ASI input connector: BNC, impedance 75Ω | |
| ASI Output | |
| Two separate ASI outputs | |
| Maximum bit rate: 215Mbps | |
| IP Output | |
| Two separate gigabit outputs | |
| Maximum output bit rate: 215 Mbps | |
| UDP output, support unicast and multicast | |
| Miscellaneous | |
| Size | |
| 44mm X 482mm X 410mm | |
| Environment | |
| 0~45℃(operation)；-20~80℃(storage) | |
| Power | |
| 220VAC±10%，50Hz | |
| Consumption | |
| 25W |
