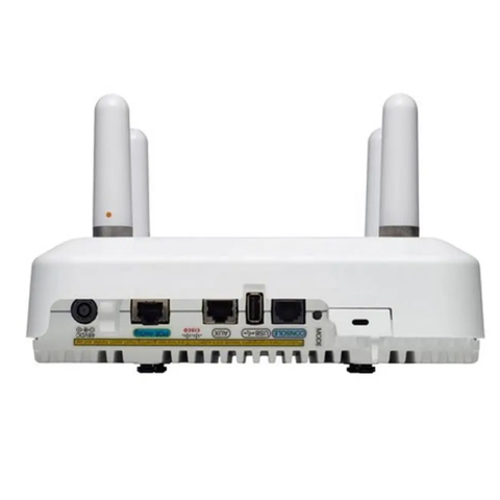

Best price Cis co Aironet 2802 Series 802.11ac Dual Access Point AIR-AP2802E-E-K9, air-ap2802e-a-k9
Short Description:
| AIR-AP2802E-E-K9 Specification | |
| Software | * Unified Wireless Network Software Release 8.2.111.0 or later * IOS XE Software Release 16.3 |
| Supported wireless LAN controllers | * 2500 Series Wireless Controllers, Wireless Controller Module for ISR G2, Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches, 5500 Series Wireless Controllers, Flex 7500 Series Wireless Controllers, 8500 Series Wireless Controllers, Virtual Wireless Controller * Catalyst 3850 Series Switches, Catalyst 3650 Series Switches * Mobility Express |
| 802.11n version 2.0 (and related) capabilities | * 4x4 MIMO with three spatial streams * Maximal ratio combining (MRC) * 802.11n and 802.11a/g beamforming * 20- and 40-MHz channels * PHY data rates up to 450 Mbps (40 MHz with 5 GHz) * Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) * 802.11 dynamic frequency selection (DFS) * Cyclic shift diversity (CSD) support |
| 802.11ac Wave 1 capabilities | * 4x4 MIMO with three spatial streams * MRC * 802.11ac beamforming * 20-, 40-, and 80-MHz channels * PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) * Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) * 802.11 DFS * CSD support |
| 802.11ac Wave 2 capabilities | * 4x4 MU-MIMO with three spatial streams * MRC * 802.11ac beamforming * 20-, 40-, 80, 160-MHz channels * PHY data rates up to 5.2 Gbps * Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) * 802.11 DFS * CSD support |
| Integrated antenna | Flexible radio (either 2.4 GHz or 5 GHz) * 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth * 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°Dedicated 5-GHz radio * 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
| External antenna (sold separately) | * 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) * offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios |
| Smart antenna connector | * Available on the 2802e Series access points only * Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point * Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio |
