| Humidity Range Operating |
10 - 90% (non-condensing) |
| Max Operating Temperature |
50 °C |
| Min Operating Temperature |
-20 °C |
| Interfaces |
1 x 1000Base-T (PoE+) - RJ-45 ¦ 1 x console - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 1 x 1000Base-T - RJ-45 ¦ 4 x aerial - RP-TNC |
| Depth |
21.08 cm |
| Device Type |

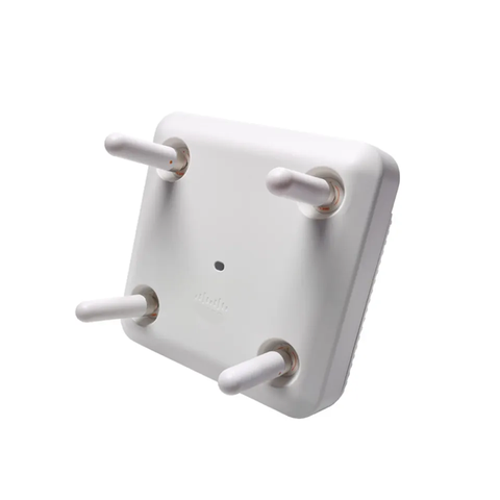

Radio access point |
| Height |
50.8 cm |
| Ruggedized Design |
Outdoor |
| Weight |
1.41 kg |
| Width |
21.08 cm |
| Compliant Standards |
VCCI, ICES-003, FCC Part 15.247, RSS-210, RSS-102, UL 2043, AES, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15.107, FCC Part15.109, EN 60601-1-2, ARIB STD-T66, ARIB STD-T71, EN50155, EMI, Directive 93/42/EEC, EN 300 328, FCC OET Bulletin 65c, TLS, EN 301489-1, EN 301 893, CAN/CSA-C22.2 No. 60950-1, EN 301 489-17 |
| Authentication Method |
MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST |
| Compliant Standards |
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.11d, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac (draft 5.0) |
| Connectivity Technology |
Wireless |
| Data Link Protocol |
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac (draft 5.0) |
| Data Transfer Rate |
1.7 Gbps |
| Encryption Algorithm |
AES, TLS, PEAP, TTLS, TKIP, WPA, WPA2 |
| Features |
DFS support, Wi-Fi Multimedia (WMM) support, Link Aggregation Control Protocol (LACP), Maximum Ratio Combining (MRC), 4T4R MIMOtechnology, 802.1x authentication, radio resource management (RRM), cyclic shift diversity (CSD), MU-MIMO technology, beamforming |
| Form Factor |
External |
| Frequency Band |
2.4 GHz, 5 GHz |
| Status Indicators |
status |
| Power Consumption Operational |
20.9 Watt |
| Power Over Ethernet (PoE) Supported |
PoE+ |
| Flash Memory |
256 MB |
| Voltage Required |
AC 120/230 V (50 - 60 Hz) |
| RAM |
1 GB |
